Maxi 99
Description

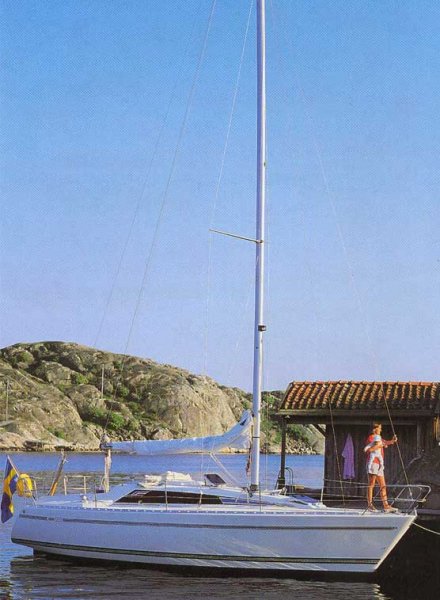

The MAXI 99 is a mid-sized cruiser. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 32.000 ft |
| LOA | 32.480 ft |
| LWL | 26.900 ft |
| Beam | 10.660 ft |
| Displacement | 9259 lb |
| Max Draft | 5.580 ft |
The standard boat dimensions
| i | 37.11 ft |
|---|---|
| j | 11.81 ft |
| p | 39.37 ft |
| e | 13.94 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37.11 ft | 11.81 ft | 39.37 ft | 13.94 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39.37 ft - (12000 mm) |
| Foot | * 13.94 ft - (4249 mm) |
| Leech-AftHdBd | * 41.14 ft - (12539 mm) |
| Tack Ang | * 88.03 ° |
| Diag (clew/head) | * 41.31 ft - (12591 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 274.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.16 ft - (9498 mm) |
| Foot | * 15.63 ft - (4764 mm) |
| Leech | * 27.08 ft - (8254 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.58 ft - (4139 mm) |
| Deck Angle | * 12 ° |
| Area | 211.62 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37 ft - (11278 mm) |
| Foot | * 19.06 ft - (5809 mm) |
| Leech | * 34.81 ft - (10610 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.72 ft - (5401 mm) |
| Deck Angle | * 4 ° |
| Area | 327.72 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 37 ft - (11278 mm) |
| MidGirth | * 21.26 ft - (6480 mm) |
| Foot | * 21.26 ft - (6480 mm) |
| Perc LP | * 180 % |
| Area | 668.63 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
