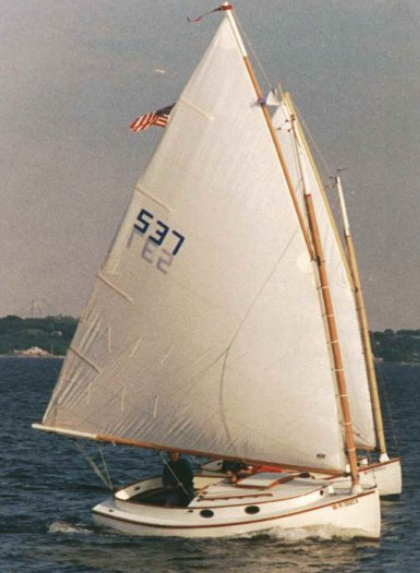

Marshall Sanderling 18'
Description
The Marshall Sanderling 18 (often just called the Sanderling) is a classic American catboat—a traditional, single-sail gaff-rigged design—built by Marshall Marine Corporation in South Dartmouth, Massachusetts. Introduced in 1962, it's one of the longest continuously produced fiberglass sailboats, with over 860 built to date. Designed by Breckenridge (Breck) Marshall as a modern take on a 1941 wooden catboat by "Pop" Arnold, it revived interest in catboats by making them accessible, durable, and practical in fiberglass rather than wood. It's renowned for its simplicity, stability, spacious cockpit (unusually large for its length), and versatility as a daysailer with overnight/weekend capability. The design emphasizes ease of handling—great for solo sailing, family outings, or shallow-water gunkholing—while offering surprising performance, especially downwind where its big sail area shines.
Construction Details
| Designer | Breckenridge H. Marshall |
|---|---|
| Builder | Marshall Marine |
| Length | 18.167 ft |
| LOA | 18.167 ft |
| LWL | 17.500 ft |
| Beam | 8.500 ft |
| Displacement | 2200 lb |
| Ballast | 500 lb |
| Max Draft | 4.330 ft |
| Min Draft | 1.330 ft |
| Year Built | 1962 |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
Marshall Sanderling 18' - GAFF MAIN
| Luff | 11.92 ft - (3633 mm) |
|---|---|
| Foot | 18 ft - (5486 mm) |
| Leech | 28.5 ft - (8687 mm) |
| Tack Angle | * 88.06 ° |
| Diag (clew/throat) | 21.25 ft - (6477 mm) |
| Head | 14.33 ft - (4368 mm) |
| Area | * 254.44 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
