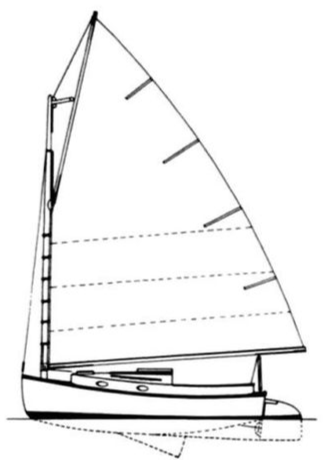

Marshall 22 Catboat
Description
The Marshall 22 (often abbreviated as M-22) is an iconic American trailerable pocket cruiser and daysailer designed by Breckenridge "Breck" H. Marshall, introduced in 1965. Built by Marshall Marine Corporation in South Dartmouth, Massachusetts, it's still in production after nearly 60 years, with over 400 units constructed—making it one of the longest-running continuously produced sailboat designs. Primarily a gaff-rigged catboat, it emphasizes simplicity, shallow draft for gunkholing, and classic Cape Cod aesthetics, with a beamy hull that punches above its size in stability and space. A fractional sloop-rigged variant (Marshall 22 Sloop) is also available.
Construction Details
| Designer | Breckenridge H. Marshall |
|---|---|
| Builder | Marshall Marine |
| Length | 22.000 ft |
| LWL | 21.250 ft |
| Beam | 10.167 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
| Sail Type | GAFF MAIN |
|---|---|
| Luff | 14.42 ft - (4395 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 33.083 ft - (10084 mm) |
| Tack Angle | * 85.45 ° |
| Diag (clew/throat) | 25.33 ft - (7721 mm) |
| Head | 16.75 ft - (5105 mm) |
| Area | * 365.84 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
