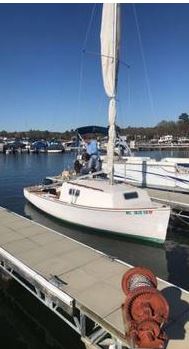

Mallard 19
Description
The Mallard 19, a rare fiberglass daysailer-cruiser designed by Vince DiMaio and built by Customflex in the USA starting in 1969 with fewer than 40 units produced, channels the Flying Scot's proven hull lines into a compact, "boat-shaped" fractional sloop with centerboard trunk for versatile shallow-water access, boasting LOA 19.08 ft, LWL 18.83 ft, beam 6.75 ft, displacement 1,050 lbs (ultralight D/L 70 for quick acceleration), and 173 sq ft sail area yielding a high SA/D of 26.8—delivering spirited performance with nimble handling in light airs (4-5 knots in 5-7 knots breeze via genoa), sharp upwind pointing through ~100° at 5 knots in 12 knots wind, and planing reaches to hull speed of 5.81 knots (PHRF ~100 estimated), though its low comfort ratio of 6.7 and capsize screening of 2.66 demand attentive crewing in gusts over 20 knots, suiting coastal day sails or overnights for solo or small crews rather than rough offshore.
Construction Details
| Designer | Vince DiMaio |
|---|---|
| Builder | Customflex (USA) |
| Length | 19.000 ft |
| LOA | 19.083 ft |
| LWL | 18.830 ft |
| Beam | 6.750 ft |
| Displacement | 1050 lb |
| Max Draft | 3.500 ft |
| Min Draft | 0.750 ft |
| Year Built | 1969 |
The standard boat dimensions
| i | 21.33 ft |
|---|---|
| j | 6 ft |
| p | 23.50 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 21.33 ft | 6 ft | 23.50 ft | 10 ft | - | - | - | - |
Sails
Mallard 19 - MAINSAIL
| Luff | * 23.5 ft - (7163 mm) |
|---|---|
| Foot | * 10 ft - (3048 mm) |
| Leech | * 25.07 ft - (7641 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 25.22 ft - (7687 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 121.769 ft² |
| Edit in Calculator | |
Mallard 19 - JIBSAIL
| Luff | * 17.73 ft - (5404 mm) |
|---|---|
| Foot | * 7.79 ft - (2374 mm) |
| Leech | * 15.71 ft - (4788 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 6.9 ft - (2103 mm) |
| Deck Angle | * 12 ° |
| Area | * 61.17 ft² |
| Edit in Calculator | |
Mallard 19 - GENOA
| Luff | * 21.05 ft - (6416 mm) |
|---|---|
| Foot | * 9.56 ft - (2914 mm) |
| Leech | * 19.97 ft - (6087 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 9 ft - (2743 mm) |
| Deck Angle | * 4 ° |
| Area | * 94.73 ft² |
| Edit in Calculator | |
Mallard 19 - ASYMMETRICAL
| Luff | * 21.05 ft - (6416 mm) |
|---|---|
| Foot | * 9.9 ft - (3018 mm) |
| Leech | * 19.37 ft - (5904 mm) |
| Perc LP | * 165 % |
| Area | * 156.3 ft² |
| Edit in Calculator | |
