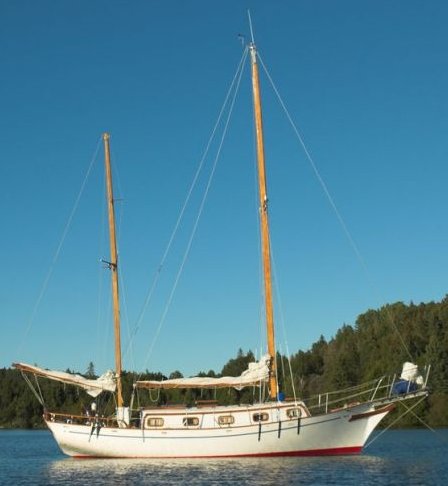

MAGELLAN 35
Description
The Magellan 35 is a rare classic wooden-planked cruiser designed by the American firm Eldredge & McInnis (known for traditional, seaworthy motor and sail yachts in the mid-20th century) and built by American Marine Ltd. (Hong Kong, a yard famous for high-quality teak/wood construction under brands like Grand Banks) starting in 1965. Only a small number were produced (likely in the low teens; one documented example is hull #11 of 13), making it a collector's item today—often described as a "lovely" or "very rare" vessel with exceptional craftsmanship (solid Philippine mahogany planking, solid teak decks, hand-rubbed Burmese teak interior). It's a heavy, long-keel monohull emphasizing stability, a dry ride, and comfortable offshore/coastal cruising, with a traditional masthead sloop rig and practical layout (good headroom, enclosed head, galley, berths for 4–6).
Construction Details
| Builder | American Marine Ltd. (Hong Kong) |
|---|---|
| Length | 34.710 ft |
| LOA | 34.710 ft |
| LWL | 29.000 ft |
| Beam | 11.420 ft |
| Displacement | 17641 lb |
| Max Draft | 4.750 ft |
| Year Built | 1965 |
The standard boat dimensions
| i | 42 ft |
|---|---|
| j | 11.75 ft |
| p | 35.50 ft |
| e | 17.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 42 ft | 11.75 ft | 35.50 ft | 17.25 ft | - | - | - | - |
Sails
MAGELLAN 35 - MAINSAIL
| Luff | * 35.5 ft - (10820 mm) |
|---|---|
| Foot | * 17.25 ft - (5258 mm) |
| Leech | * 38.71 ft - (11799 mm) |
| Tack Angle | * 88.02 ° |
| Diagonal | * 38.93 ft - (11866 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 305.83 ft² |
| Edit in Calculator |
MAGELLAN 35 - JIBSAIL
| Luff | * 34.89 ft - (10634 mm) |
|---|---|
| Foot | * 15.25 ft - (4648 mm) |
| Leech | * 30.93 ft - (9427 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.51 ft - (4118 mm) |
| Deck Angle | * 12 ° |
| Area | 235.74 ft² |
| Edit in Calculator |
MAGELLAN 35 - GENOA
| Luff | * 41.43 ft - (12628 mm) |
|---|---|
| Foot | * 18.71 ft - (5703 mm) |
| Leech | * 39.32 ft - (11985 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.63 ft - (5374 mm) |
| Deck Angle | * 4 ° |
| Area | 365.09 ft² |
| Edit in Calculator |
MAGELLAN 35 - SPINNAKER
| Stays | * 41.43 ft - (12628 mm) |
|---|---|
| MidGirth | * 21.15 ft - (6447 mm) |
| Foot | * 21.15 ft - (6447 mm) |
| Perc LP | * 180 % |
| Area | 744.81 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
