Macgregor 25
Description

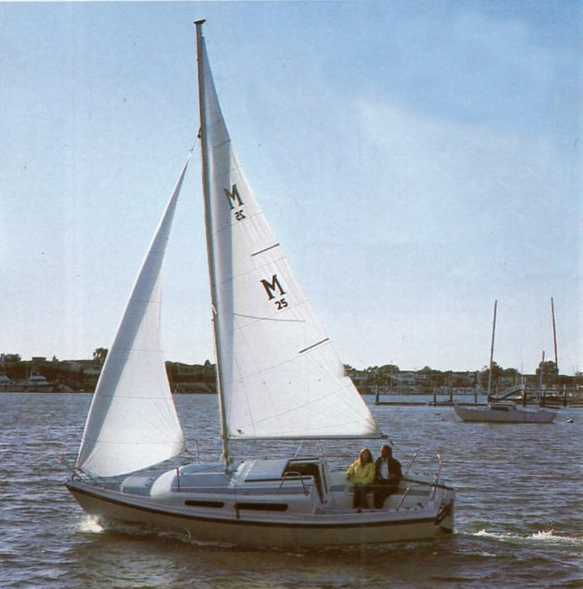

The MacGregor 25 is an iconic American fiberglass trailerable sailboat designed by Roger MacGregor and originally built as the Venture 25 by Venture Yachts from 1973 to 1980. In 1981, production shifted to MacGregor Yacht Corp. (founded by Roger MacGregor, a former Ford employee), where it was rebranded as the MacGregor 25 with minimal changes. This "everyman's sailboat" emphasized affordability, ease of trailering, and accessibility, selling over 7,000 units until production ended in 1987. It was inducted into the American Sailboat Hall of Fame in 2000 for democratizing sailing, much like the Model T did for cars. Known for its lightweight water-ballast system (filled via hull ports for stability, drained for towing), it's a versatile coastal cruiser and racer—nimble under sail but underpowered in light air. Variants include the masthead sloop (MH) rig (from 1980) for better headsail options.
Construction Details
| Designer | Roger MacGregor |
|---|---|
| Builder | Venture Yachts |
| Length | 25.000 ft |
| LOA | 21.000 ft |
| LWL | 18.500 ft |
| Beam | 6.830 ft |
| Displacement | 1175 lb |
| Max Draft | 5.500 ft |
| Min Draft | 1.000 ft |
The standard boat dimensions
| i | 25 ft |
|---|---|
| j | 9.75 ft |
| p | 24.50 ft |
| e | 10.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 25 ft | 9.75 ft | 24.50 ft | 10.50 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 24.5 ft - (7468 mm) |
| Foot | * 10.5 ft - (3200 mm) |
| Leech | * 26.13 ft - (7964 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 26.32 ft - (8022 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 132.79 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 18 ft - (5486 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 15.58 ft - (4749 mm) |
| Percentage LP | * 79.9 % |
| Length Perpendicular | * 7.79 ft - (2374 mm) |
| Deck Angle | * 8.75 ° |
| Area | * 70.11 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 19 ft - (5791 mm) |
| Percentage LP | * 110.46 % |
| Length Perpendicular | * 10.77 ft - (3283 mm) |
| Deck Angle | * 9.21 ° |
| Area | * 118.46 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 19.5 ft - (5944 mm) |
| Percentage LP | * 99.9 % |
| Length Perpendicular | * 9.74 ft - (2969 mm) |
| Deck Angle | * 6.36 ° |
| Area | * 107.16 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 21.47 ft - (6544 mm) |
| Foot | * 13.41 ft - (4087 mm) |
| Leech | * 18.02 ft - (5492 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 11.21 ft - (3417 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 120.33 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 25.5 ft - (7772 mm) |
| Foot | 16.17 ft - (4929 mm) |
| Leech | 23.75 ft - (7239 mm) |
| Percentage LP | * 150.36 % |
| Length Perpendicular | * 14.66 ft - (4468 mm) |
| Deck Angle | * 3.63 ° |
| Area | * 186.95 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 22.58 ft - (6882 mm) |
| Foot | 16.167 ft - (4928 mm) |
| Leech | 21.75 ft - (6629 mm) |
| Percentage LP | * 151.38 % |
| Length Perpendicular | * 14.76 ft - (4499 mm) |
| Deck Angle | * 2.8 ° |
| Area | * 166.61 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 24.5 ft - (7468 mm) |
| Foot | 16.167 ft - (4928 mm) |
| Leech | 22.92 ft - (6986 mm) |
| Percentage LP | * 150.15 % |
| Length Perpendicular | * 14.64 ft - (4462 mm) |
| Deck Angle | * 3.81 ° |
| Area | * 179.31 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 24.5 ft - (7468 mm) |
| Foot | 15.25 ft - (4648 mm) |
| Leech | 22.5 ft - (6858 mm) |
| Percentage LP | * 140.72 % |
| Length Perpendicular | * 13.72 ft - (4182 mm) |
| Deck Angle | * 4.61 ° |
| Area | * 168.03 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 23 ft - (7010 mm) |
| Percentage LP | * 130.46 % |
| Length Perpendicular | * 12.72 ft - (3877 mm) |
| Deck Angle | * 3.35 ° |
| Area | * 159.05 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 25.49 ft - (7769 mm) |
| Foot | * 16.93 ft - (5160 mm) |
| Leech | * 22.39 ft - (6824 mm) |
| Perc LP | * 149.95 % |
| Length Perp | * 14.62 ft - (4456 mm) |
| Deck Angle | * 8.96 ° |
| Area | * 186.36 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 16.25 ft - (4953 mm) |
| Leech | 24 ft - (7315 mm) |
| Perc LP | * 165 % |
| Area | * 317 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 14.76 ft - (4499 mm) |
| Foot | * 7.67 ft - (2338 mm) |
| Leech | * 11.41 ft - (3478 mm) |
| Perc LP | * 60 % |
| Length Perp | * 5.85 ft - (1783 mm) |
| Deck Angle | * 19.01 ° |
| Area | * 43.16 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 10.38 ft - (3164 mm) |
| Foot | * 9.54 ft - (2908 mm) |
| Leech | * 8.65 ft - (2637 mm) |
| Length Perp | * 8.65 ft - (2637 mm) |
| Tack Angle | * -25 ° |
| Area | * 39 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
