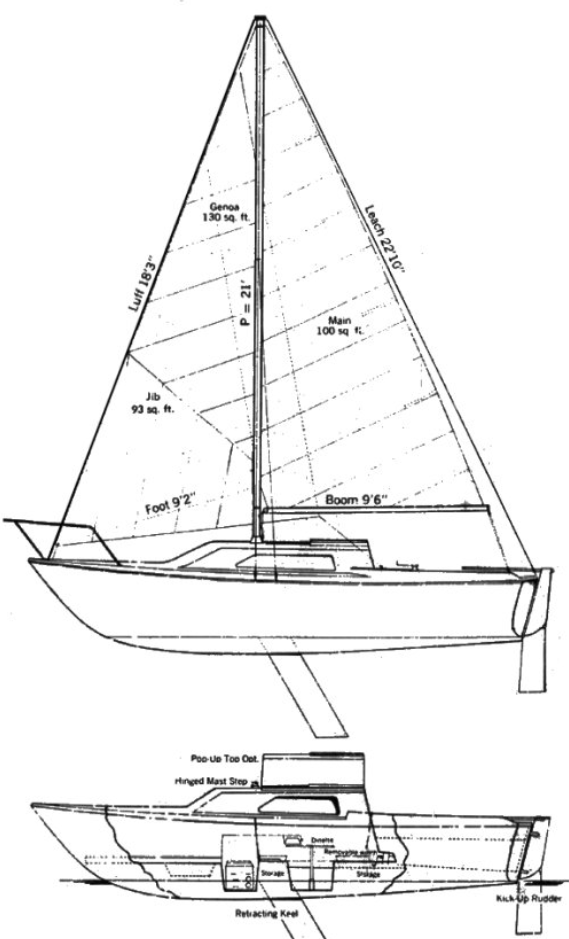

Kells 23 7\8 Rig
Description
The KELLS 23 7\8 RIG is a sailboat. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 21 ft |
|---|---|
| j | 8.75 ft |
| p | 21 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 21 ft | 8.75 ft | 21 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| 23 | * 21 |
| 10 | * 9.5 |
| 24.55 | * 22.59 |
| 88 | * 87.97 |
| 24.76 | * 22.74 |
| 4.5 | * 4.5 |
| 118.76 | 99.61 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 18.2 ft - (5547 mm) |
| Foot | * 12.23 ft - (3728 mm) |
| Leech | * 15.1 ft - (4602 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 10.06 ft - (3066 mm) |
| Deck Angle | * 12 ° |
| Area | 91.61 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 21.61 ft - (6587 mm) |
| Foot | * 14.68 ft - (4474 mm) |
| Leech | * 19.96 ft - (6084 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 13.13 ft - (4002 mm) |
| Deck Angle | * 4 ° |
| Area | 141.83 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 21.61 ft - (6587 mm) |
| MidGirth | * 15.75 ft - (4801 mm) |
| Foot | * 15.75 ft - (4801 mm) |
| Perc LP | * 180 % |
| Area | 289.3 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
