Kells 22 Mk Ii
Description

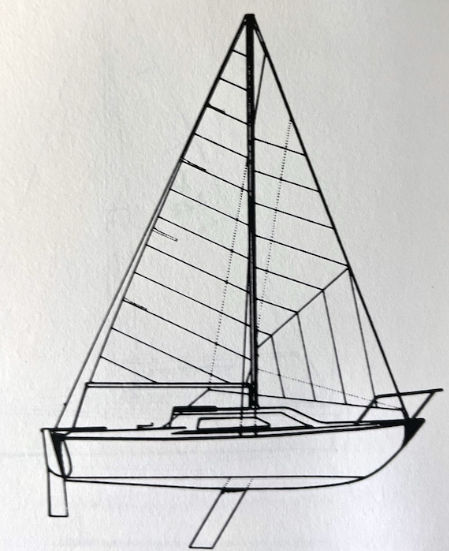

The KELLS 22 MK II is a sailboat. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 22.50 ft |
|---|---|
| j | 8 ft |
| p | 20.25 ft |
| e | 8.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 22.50 ft | 8 ft | 20.25 ft | 8.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 20.25 ft - (6172 mm) |
| Foot | * 8.5 ft - (2591 mm) |
| Leech | * 21.5 ft - (6553 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 21.69 ft - (6611 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 88.97 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 19.1 ft - (5822 mm) |
| Foot | * 10.8 ft - (3292 mm) |
| Leech | * 16.29 ft - (4965 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 9.2 ft - (2804 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 87.86 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 22.69 ft - (6916 mm) |
| Foot | * 13.09 ft - (3990 mm) |
| Leech | * 21.19 ft - (6459 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12 ft - (3658 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 136.16 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 21 ft - (6401 mm) |
| Perc LP | * 165 % |
| Area | * 242 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
