John Dory Design 25 (18' Swampscott John Dory)
Description
The John Dory Design 25 (also known as the 18' Swampscott John Dory), designed by Iain Oughtred, is a glued-lapstrake plywood rowing and sailing skiff inspired by traditional New England Swampscott dories. This versatile daysailer/rowboat emphasizes lightweight construction, ease of building (no lofting required), and multiple rig options for varied use. It's ideal for solo or small crews in sheltered or coastal waters. Plans (6 sheets with full-size patterns, construction notes, and nine rig options) are available from the WoodenBoat Store. Skill level: Beginner to intermediate. Build time: ~240 hours. Construction: Over sawn frames; spars typically laminated Douglas-fir.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |

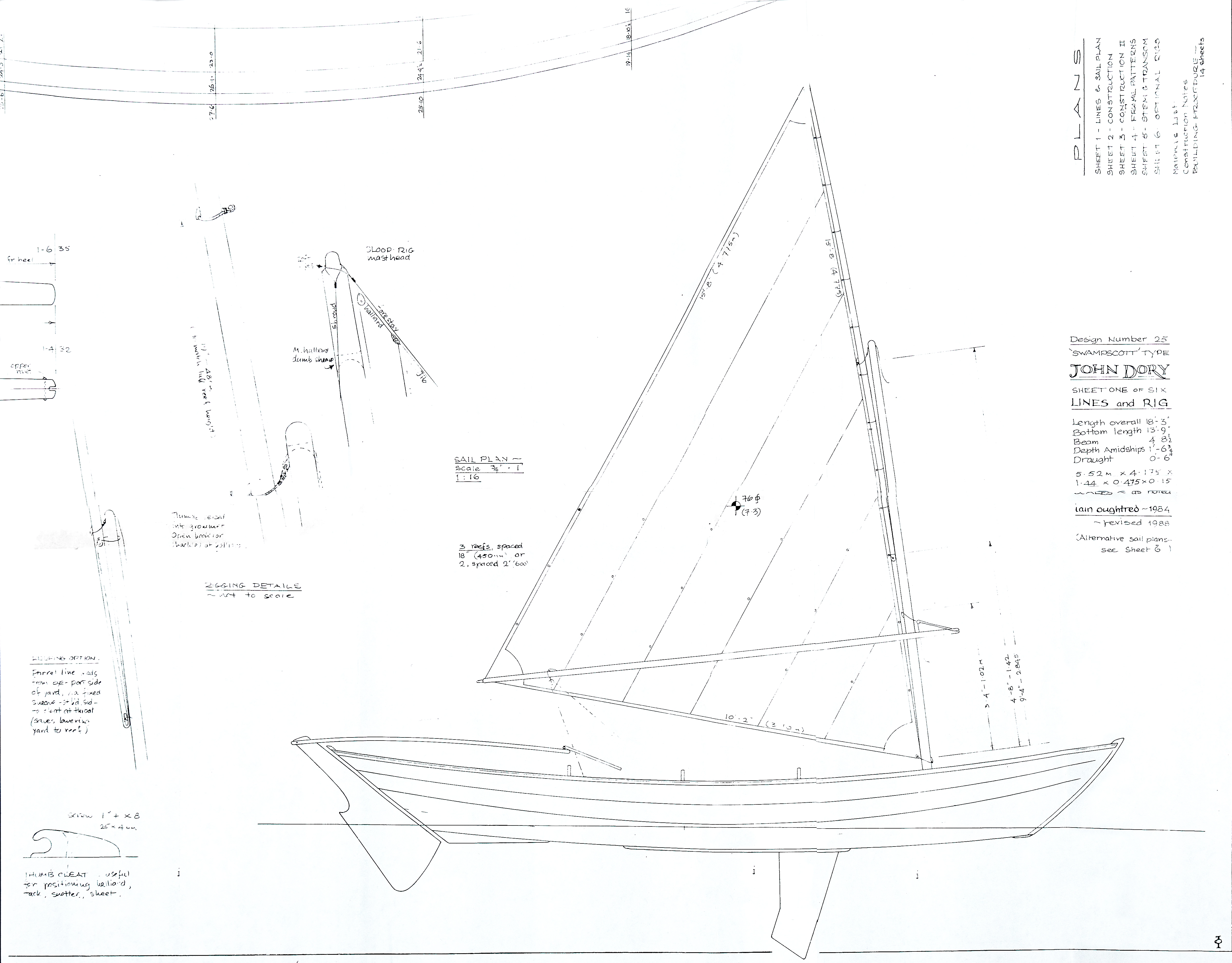

Blueprints
Sails
John Dory Design 25 (18' Swampscott John Dory) - MAINSAIL
| Luff | 15.66 ft - (4773 mm) |
|---|---|
| Foot | 10.16 ft - (3097 mm) |
| Leech | * 18.17 ft - (5538 mm) |
| Tack Angle | * 88.02 ° |
| Diagonal | * 18.37 ft - (5599 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | 79.42 ft² |
| Edit in Calculator | |
John Dory Design 25 (18' Swampscott John Dory) - SPRIT
| Luff | 8.33 ft - (2539 mm) |
|---|---|
| Foot | 8.5 ft - (2591 mm) |
| Leech | 12.75 ft - (3886 mm) |
| Tack Angle | * 81.08 ° |
| Diag (clew/throat) | 10.94 ft - (3335 mm) |
| Head | 7.42 ft - (2262 mm) |
| Area | * 75.44 ft² |
| Edit in Calculator | |
