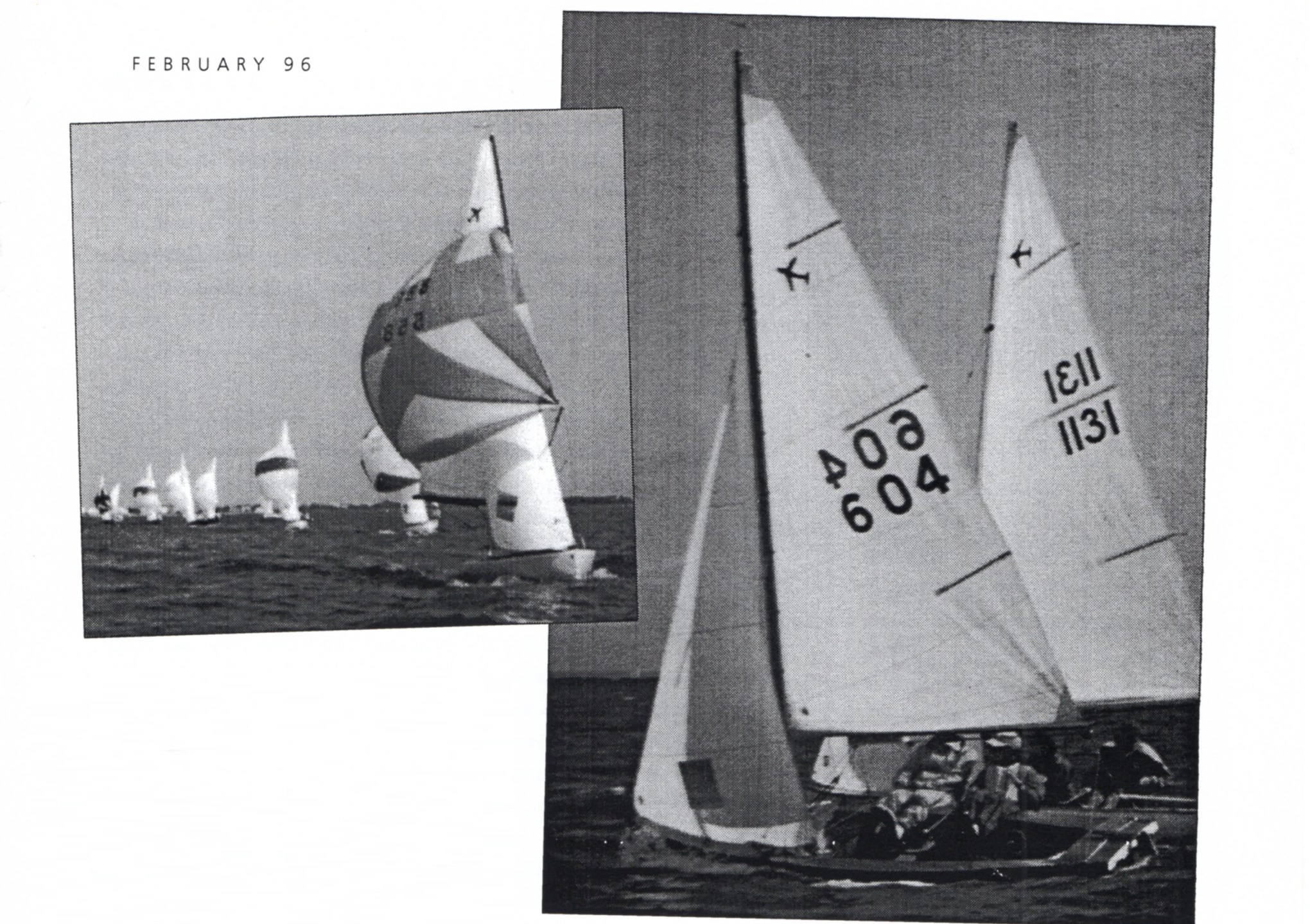

JET 14
Description
The JET 14 is a dinghy designed by Uffa Fox. This nimble dinghy is designed for responsive sailing and easy handling, featuring variable draft for versatility in different sailing conditions. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Sail calculations are not available for this boat as some dimensions are missing.
Construction Details
| Designer | Uffa Fox |
|---|---|
| Length | 14.000 ft |
| LOA | 14.080 ft |
| LWL | 13.920 ft |
| Beam | 4.670 ft |
| Displacement | 285 lb |
| Max Draft | 4.170 ft |
| Min Draft | 0.330 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 16.58 ft - (5054 mm) |
| Foot | 8.38 ft - (2554 mm) |
| Leech-AftHdBd | * 17.21 ft - (5246 mm) |
| Tack Ang | * 81.96 ° |
| Diag (clew/head) | 17.5 ft - (5334 mm) |
| Head (inches) | 6 in |
| Area (no Roach) | * 72.32 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 12.25 ft - (3734 mm) |
| Foot | 6.42 ft - (1957 mm) |
| Leech | 11.5 ft - (3505 mm) |
| Length Perpendicular | * 5.95 ft - (1814 mm) |
| Area | * 36.45 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | 14.08 ft - (4292 mm) |
| MidGirth | 11 ft - (3353 mm) |
| Foot | 12.67 ft - (3862 mm) |
| Area | * 152 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
