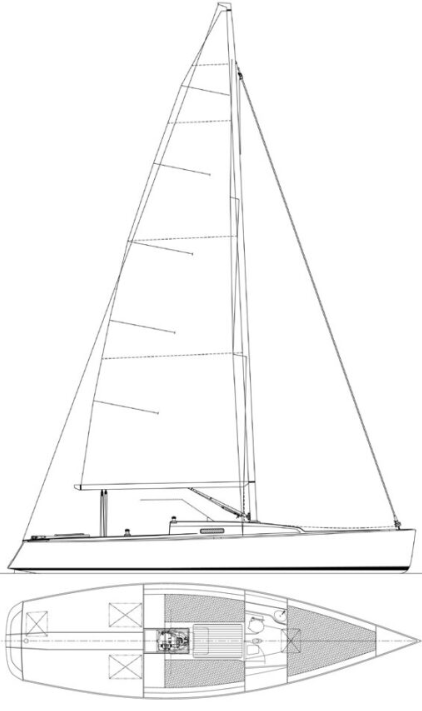

J/100
Description
LWL 29.00 Beam 9.25 Standard Draft 5.75 Shoal Draft Option 4.40 Standard Ballast 2,450 Displacement 6,500 ISP 43.00
Construction Details
| Designer | Rod Johnstone |
|---|---|
| Length | 32.800 ft |
| LOA | 32.800 ft |
| LWL | 29.000 ft |
| Beam | 9.280 ft |
| Displacement | 6500 lb |
| Max Draft | 5.750 ft |
The standard boat dimensions
| i | 38.50 ft |
|---|---|
| j | 11.50 ft |
| p | 38 ft |
| e | 13.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 38.50 ft | 11.50 ft | 38 ft | 13.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38 ft - (11582 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Leech | * 39.6 ft - (12070 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 39.88 ft - (12155 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 264.57 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 37.75 ft - (11506 mm) |
| Foot | 12.25 ft - (3734 mm) |
| Leech | 34.5 ft - (10516 mm) |
| Percentage LP | * 96.87 % |
| Length Perpendicular | * 11.14 ft - (3395 mm) |
| Deck Angle | * 7.96 ° |
| Area | * 210.25 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.17 ft - (11634 mm) |
| Foot | * 18.43 ft - (5617 mm) |
| Leech | * 36.07 ft - (10994 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 329.19 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 44 ft - (13411 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 41.75 ft - (12725 mm) |
| Perc LP | * 165 % |
| Area | * 660 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 42.29 ft - (12890 mm) |
| MidGirth | 21.7 ft - (6614 mm) |
| Foot | * 20.7 ft - (6309 mm) |
| Perc LP | * 180 % |
| Area | * 744 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
