Islay Skiff 16
Description

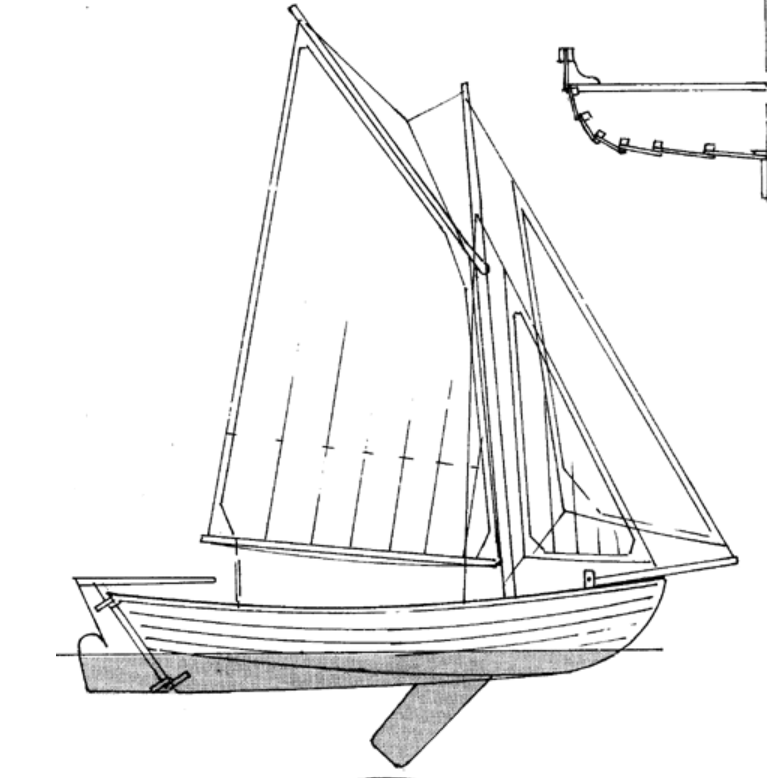

The Islay Skiff 16 is a sailboat designed by Selway Fisher Design.
Sail calculations are not available for this boat as no dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GAFF MAIN |
|---|---|
| Luff | 8.169 ft - (2490 mm) |
| Foot | 8.629 ft - (2630 mm) |
| Leech | 15.551 ft - (4740 mm) |
| Head | * 79.04 ft - (24091 mm) |
| Diag (clew/throat) | 10.695 ft - (3260 mm) |
| Tack Angle | 9.564 ° |
| Area | * 84.94 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 13.123 ft - (4000 mm) |
| Foot | 6.102 ft - (1860 mm) |
| Leech | 12.073 ft - (3680 mm) |
| Area | * 36.74 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
