Islander 40 (Peterson 40 or Islander P40R)
Description
The Islander P 40R (also known as the Islander 40 or Islander Peterson 40) is a classic American racer-cruiser sailboat designed by renowned naval architect Doug Peterson. First built in 1979 by Islander Yachts, it measures 39.5 feet in length overall (LOA) and was produced through the mid-1980s, with around 100 hulls made. It's known for its solid fiberglass construction, balanced performance in both racing and cruising, and spacious interior layout for its era, including a V-berth forward, saloon, galley, and aft cabin.
Construction Details
| Designer | Doug Peterson |
|---|---|
| Builder | Islander Yachts |
| Length | 39.540 ft |
| LOA | 39.540 ft |
| LWL | 30.833 ft |
| Beam | 11.833 ft |
| Displacement | 15000 lb |
| Ballast | 7700 lb |
| Max Draft | 7.160 ft |
| Year Built | 1979 |
The standard boat dimensions
| i | 54.50 ft |
|---|---|
| j | 16.50 ft |
| p | 48.25 ft |
| e | 13.83 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 54.50 ft | 16.50 ft | 48.25 ft | 13.83 ft | - | - | - | - |

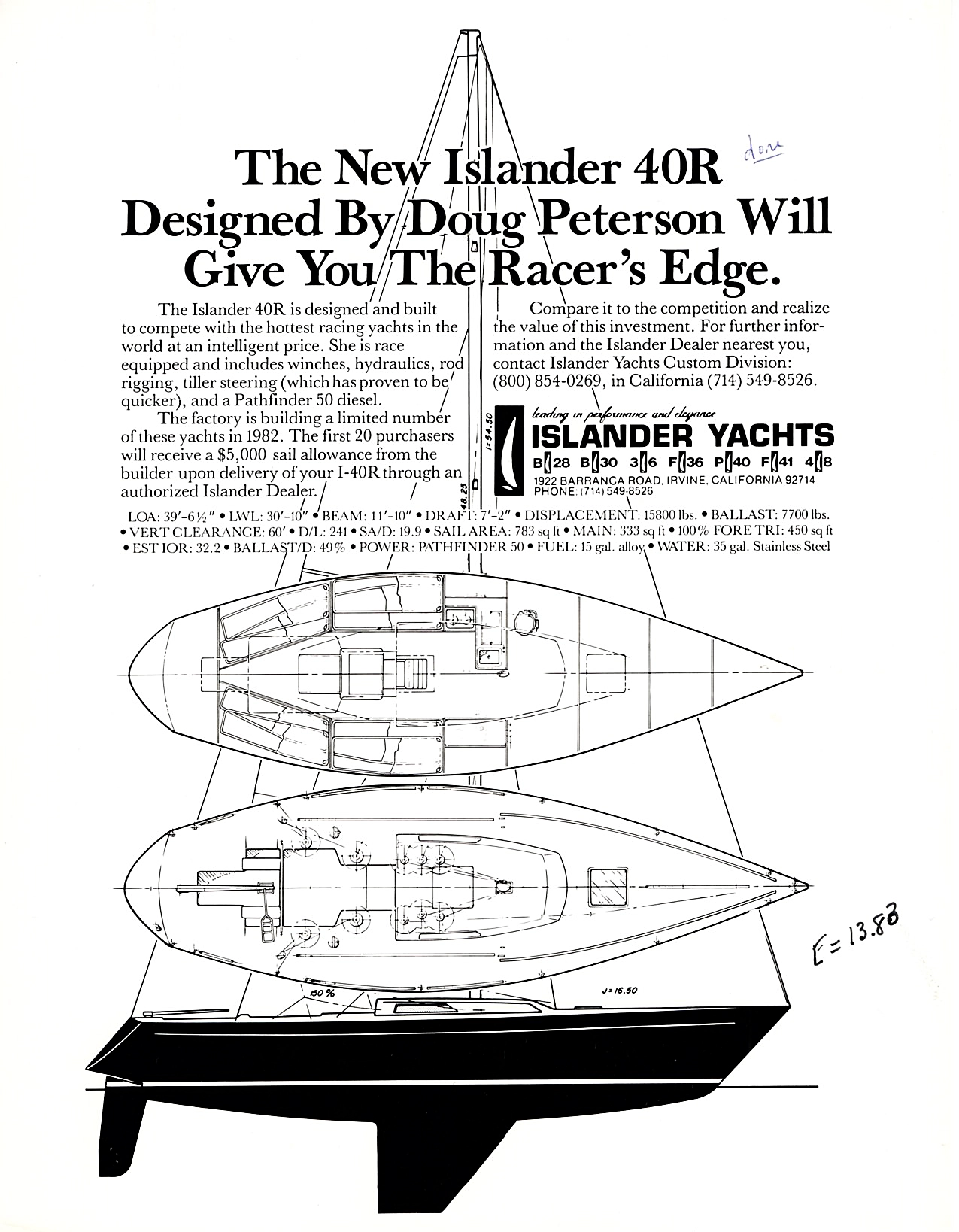

Documents
Sails
Islander 40 (Peterson 40 or Islander P40R) - MAINSAIL
| Luff | * 48.25 ft - (14707 mm) |
|---|---|
| Foot | * 13.83 ft - (4215 mm) |
| Leech | * 49.46 ft - (15075 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 49.73 ft - (15158 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 343.89 ft² |
| Edit in Calculator | |
Islander 40 (Peterson 40 or Islander P40R) - JIBSAIL
| Luff | * 45.55 ft - (13884 mm) |
|---|---|
| Foot | * 21.67 ft - (6605 mm) |
| Leech | * 39.9 ft - (12162 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 18.98 ft - (5785 mm) |
| Deck Angle | * 12 ° |
| Area | * 432.3 ft² |
| Edit in Calculator | |
Islander 40 (Peterson 40 or Islander P40R) - GENOA
| Luff | * 54.1 ft - (16490 mm) |
|---|---|
| Foot | * 26.48 ft - (8071 mm) |
| Leech | * 51.08 ft - (15569 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24.75 ft - (7544 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 669.47 ft² |
| Edit in Calculator | |
Islander 40 (Peterson 40 or Islander P40R) - DRIFTER
| Luff | * 54.1 ft - (16490 mm) |
|---|---|
| Foot | * 27.5 ft - (8382 mm) |
| Leech | * 48.85 ft - (14889 mm) |
| Perc LP | * 150 % |
| Length Perp | * 24.75 ft - (7544 mm) |
| Deck Angle | * 8.99 ° |
| Area | * 669.52 ft² |
| Edit in Calculator | |
Islander 40 (Peterson 40 or Islander P40R) - ASYMMETRICAL
| Luff | * 54.1 ft - (16490 mm) |
|---|---|
| Foot | * 27.22 ft - (8297 mm) |
| Leech | * 49.77 ft - (15170 mm) |
| Perc LP | * 165 % |
| Area | * 1104 ft² |
| Edit in Calculator | |
Islander 40 (Peterson 40 or Islander P40R) - SPINNAKER
| Stays | * 54.1 ft - (16490 mm) |
|---|---|
| MidGirth | * 29.7 ft - (9053 mm) |
| Foot | * 29.7 ft - (9053 mm) |
| Perc LP | * 180 % |
| Area | * 1366 ft² |
| Edit in Calculator | |
Islander 40 (Peterson 40 or Islander P40R) - STORMJIB
| Luff | * 31.32 ft - (9546 mm) |
|---|---|
| Foot | * 12.21 ft - (3722 mm) |
| Leech | * 26.12 ft - (7961 mm) |
| Perc LP | * 60 % |
| Length Perp | * 9.9 ft - (3018 mm) |
| Deck Angle | * 18.99 ° |
| Area | * 155.01 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
