International Folkboat
Description

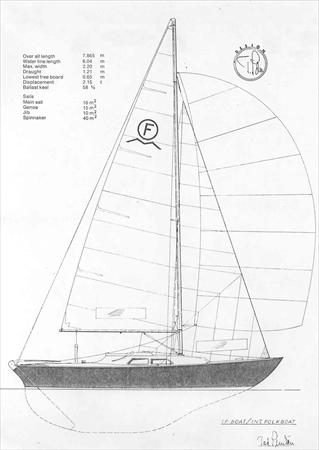

International Folkboat 19'10" LWL 7'3" Beam 3'11.5" Draft
Construction Details
| Designer | Tord Sunden |
|---|---|
| Length | 25.800 ft |
| LOA | 25.750 ft |
| LWL | 19.780 ft |
| Beam | 7.380 ft |
| Displacement | 4740 lb |
| Max Draft | 3.970 ft |
The standard boat dimensions
| i | 25.87 ft |
|---|---|
| j | 8.20 ft |
| p | 28.70 ft |
| e | 11.15 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25.87 ft | 8.20 ft | 28.70 ft | 11.15 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 24 ft - (7315 mm) |
| Perc LP | * 165 |
| Area | * 273 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 25.78 ft - (7858 mm) |
| Foot | * 13.75 ft - (4191 mm) |
| Leech | * 23.17 ft - (7062 mm) |
| Perc LP | * 150 |
| Length Perp | * 12.3 |
| Deck Angle | * 8.96 ° |
| Area | * 158.55 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 25.59 ft - (7800 mm) |
| Foot | 12.79 ft - (3898 mm) |
| Leech | 25.28 ft - (7705 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12.3 ft - (3749 mm) |
| Deck Angle | * -1.69 ° |
| Area | * 157.39 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 24 ft - (7315 mm) |
| Percentage LP | * 149.39 % |
| Length Perpendicular | * 12.25 ft - (3734 mm) |
| Deck Angle | * 2.01 ° |
| Area | * 153.09 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 24.75 ft - (7544 mm) |
| Foot | 13.25 ft - (4039 mm) |
| Leech | 23.33 ft - (7111 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12.3 ft - (3749 mm) |
| Deck Angle | * 4.24 ° |
| Area | * 152.22 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25.59 ft - (7800 mm) |
| Foot | 9.25 ft - (2819 mm) |
| Leech | 23.45 ft - (7148 mm) |
| Percentage LP | * 103.29 % |
| Length Perpendicular | * 8.47 ft - (2582 mm) |
| Deck Angle | * 6.14 ° |
| Area | * 108.35 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.75 ft - (7544 mm) |
| Foot | 9.25 ft - (2819 mm) |
| Leech | 22.083 ft - (6731 mm) |
| Percentage LP | * 100.12 % |
| Length Perpendicular | * 8.21 ft - (2502 mm) |
| Deck Angle | * 9.78 ° |
| Area | * 101.66 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25.25 ft - (7696 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 22.92 ft - (6986 mm) |
| Percentage LP | * 99.39 % |
| Length Perpendicular | * 8.15 ft - (2484 mm) |
| Deck Angle | * 7.57 ° |
| Area | * 102.84 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 21.71 ft - (6617 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | * 18.89 ft - (5758 mm) |
| Percentage LP | * 127.07 % |
| Length Perpendicular | * 10.42 ft - (3176 mm) |
| Deck Angle | * 12.16 ° |
| Area | * 113.1 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 27.33 ft - (8330 mm) |
| Foot | 10.5 ft - (3200 mm) |
| Leech-AftHdBd | * 28.72 ft - (8754 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 28.93 ft - (8818 mm) |
| Head (inches) | 4.5 in |
| Area (no Roach) | * 147.87 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 28.7 ft - (8748 mm) |
| Foot | 11.15 ft - (3399 mm) |
| Leech-AftHdBd | * 30.5 ft - (9296 mm) |
| Tack Ang | * 89.78 ° |
| Diag (clew/head) | 30.75 ft - (9373 mm) |
| Head (inches) | 4.5 in |
| Area (no Roach) | * 164.28 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 27.13 |
| MidGirth | 14.91 ft - (4545 mm) |
| Foot | 14.89 ft - (4538 mm) |
| Perc LP | * 180 |
| Area | * 343 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 25.78 |
| MidGirth | * 14.76 ft - (4499 mm) |
| Foot | * 14.76 ft - (4499 mm) |
| Perc LP | * 180 |
| Area | * 323 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 14.93 ft - (4551 mm) |
| Foot | * 6.13 ft - (1868 mm) |
| Leech | * 12.3 ft - (3749 mm) |
| Perc LP | * 60 |
| Length Perp | * 4.92 |
| Deck Angle | * 19.04 ° |
| Area | * 36.73 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
