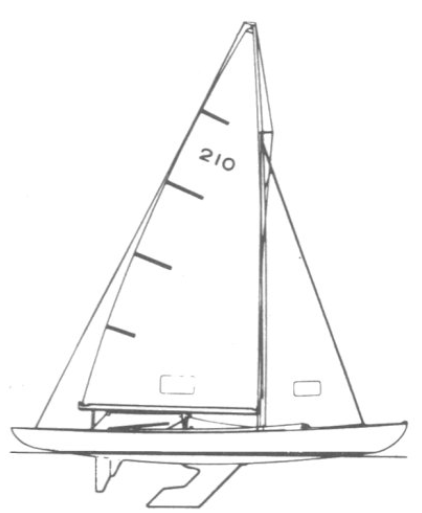

International 210
Description
2300 lbs. Disp. 1200 lbs. Ballast 24' LWL 5'10" Beam 3'10" Draft
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
Construction Details
| Designer | C. Raymond Hunt |
|---|---|
| Length | 29.830 ft |
| LOA | 33.000 ft |
| LWL | 28.210 ft |
| Beam | 8.100 ft |
| Displacement | 7385 lb |
| Max Draft | 5.410 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 28.083 ft - (8560 mm) |
| Foot | 13.8 ft - (4206 mm) |
| Leech | * 31.03 ft - (9458 mm) |
| Tack Angle | * 89.81 ° |
| Diagonal | 31.25 ft - (9525 mm) |
| Head (inches) | 4.5 in - (114 mm) |
| Area | * 198.5 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 19.5 ft - (5944 mm) |
| Foot | 8 ft - (2438 mm) |
| Leech | 17.5 ft - (5334 mm) |
| Length Perpendicular | * 7.17 ft - (2185 mm) |
| Area | * 69.96 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 19.5 ft - (5944 mm) |
| Foot | 13.33 ft - (4063 mm) |
| Leech | 19.67 ft - (5995 mm) |
| Length Perpendicular | * 12.59 ft - (3837 mm) |
| Area | * 122.73 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 22 ft - (6706 mm) |
| MidGirth | 18 ft - (5486 mm) |
| Foot | 19.167 ft - (5842 mm) |
| Area | * 358 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
