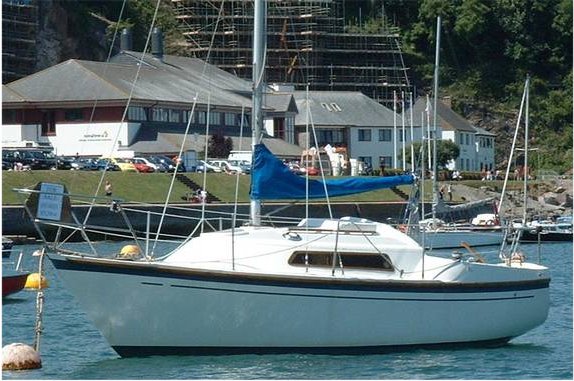

Hurley 20
Description
measurements from signet 20 cannot verify hurley 20 specs
Construction Details
| Designer | Ian Anderson |
|---|---|
| Length | 20.000 ft |
| LOA | 19.980 ft |
| LWL | 15.910 ft |
| Beam | 7.740 ft |
| Displacement | 2271 lb |
| Max Draft | 2.590 ft |
The standard boat dimensions
| i | 25 ft |
|---|---|
| j | 7.20 ft |
| p | 21.67 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25 ft | 7.20 ft | 21.67 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 21.67 ft - (6605 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 23.15 ft - (7056 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 23.36 ft - (7120 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 106.48 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21 ft - (6401 mm) |
| Foot | 8.67 ft - (2643 mm) |
| Leech | 18.5 ft - (5639 mm) |
| Percentage LP | * 105.83 % |
| Length Perpendicular | * 7.62 ft - (2323 mm) |
| Deck Angle | * 12.46 ° |
| Area | * 79.98 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23.5 ft - (7163 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 22.083 ft - (6731 mm) |
| Percentage LP | * 130.14 % |
| Length Perpendicular | * 9.37 ft - (2856 mm) |
| Deck Angle | * 4.43 ° |
| Area | * 110.06 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 14.25 ft - (4343 mm) |
| Foot | 5.33 ft - (1625 mm) |
| Leech | 11.75 ft - (3581 mm) |
| Perc LP | * 58.33 % |
| Length Perp | * 4.2 ft - (1280 mm) |
| Deck Angle | * 21.88 ° |
| Area | * 29.95 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
