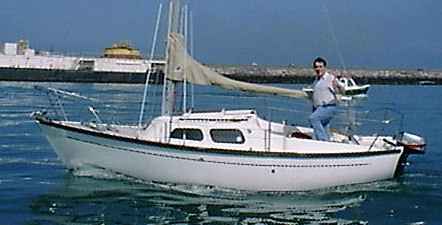

Hurley 18
Description
2350 lbs displacement 1000 lbs balast
Construction Details
| Designer | Ian Anderson |
|---|---|
| Length | 18.500 ft |
| LOA | 18.500 ft |
| LWL | 14.500 ft |
| Beam | 6.670 ft |
| Displacement | 2350 lb |
| Max Draft | 3.250 ft |
The standard boat dimensions
| i | 15.54 ft |
|---|---|
| j | 4.41 ft |
| p | 14.55 ft |
| e | 5.73 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 15.54 ft | 4.41 ft | 14.55 ft | 5.73 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 14.55 ft - (4435 mm) |
| Foot | * 5.73 ft - (1747 mm) |
| Leech-AftHdBd | * 15.29 ft - (4660 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 15.45 ft - (4709 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 43.53 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 15.35 ft - (4679 mm) |
| Foot | * 7.28 ft - (2219 mm) |
| Leech | * 14.12 ft - (4304 mm) |
| Perc LP | * 165 % |
| Area | * 84 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
