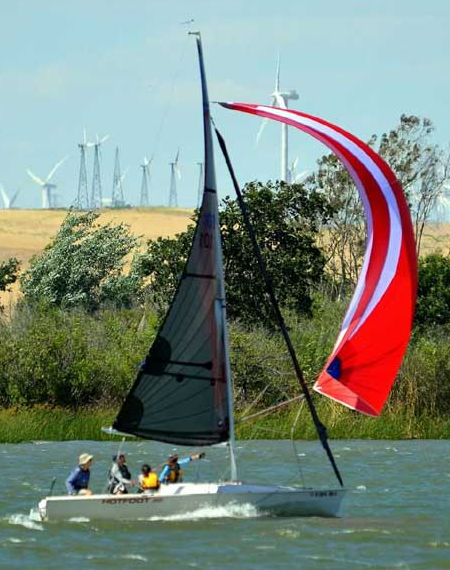

Hotfoot 20
Description
The Hotfoot 20 is a Canadian-built, high-performance trailerable sportboat designed by Steve Killing and introduced in 1983, produced in limited numbers by Hotfoot Boats until the early 1990s. Measuring 20 feet overall with a very beamy 8-foot 6-inch hull, ultralight displacement of just 1,050 lbs, and a deep bulb keel drawing 4 feet 6 inches (or optional shoal keel/centerboard version), it was engineered as a “go-fast” pocket cruiser that could plane off the wind and still offer a small but functional cabin. The fractional rig carries a large, fully battened square-top mainsail and a 150% genoa for roughly 240 sq ft upwind, plus a big asymmetrical spinnaker on a retractable bowsprit that pushes total downwind sail area past 500 sq ft. With its open-transom, self-bailing cockpit, hiking wings, and aggressive chine design, the Hotfoot 20 was often compared to a scaled-down Melges 24 and excelled in one-design racing on the Great Lakes and in British Columbia. Though only about 60 were built, it retains a dedicated following for its blistering speed, nimble handling, and surprising interior space (two quarter berths and two short V-berths) in such a lightweight package.
Construction Details
| Designer | Steve Killing |
|---|---|
| Builder | Hotfoot Boats |
| Length | 20.000 ft |
| LOA | 20.000 ft |
| LWL | 18.000 ft |
| Beam | 8.500 ft |
| Displacement | 1000 lb |
| Max Draft | 5.000 ft |
| Min Draft | 1.500 ft |
The standard boat dimensions
| i | 25 ft |
|---|---|
| j | 6.50 ft |
| p | 28 ft |
| e | 10.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 25 ft | 6.50 ft | 28 ft | 10.25 ft | - | - | - | - |
Sails
Hotfoot 20 - MAINSAIL
| Luff | * 28 ft - (8534 mm) |
|---|---|
| Foot | * 10.25 ft - (3124 mm) |
| Leech | * 29.27 ft - (8921 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 29.48 ft - (8986 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 147.97 ft² |
| Edit in Calculator | |
Hotfoot 20 - JIBSAIL
| Luff | * 20.66 ft - (6297 mm) |
|---|---|
| Foot | * 8.36 ft - (2548 mm) |
| Leech | * 18.51 ft - (5642 mm) |
| Percentage LP | * 115.08 % |
| Length Perpendicular | * 7.48 ft - (2280 mm) |
| Deck Angle | * 11.92 ° |
| Area | * 77.29 ft² |
| Edit in Calculator | |
Hotfoot 20 - GENOA
| Luff | * 24.54 ft - (7480 mm) |
|---|---|
| Foot | * 10.29 ft - (3136 mm) |
| Leech | * 23.38 ft - (7126 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 9.75 ft - (2972 mm) |
| Deck Angle | * 4.07 ° |
| Area | * 119.63 ft² |
| Edit in Calculator | |
Hotfoot 20 - GENOA
| Luff | 24 ft - (7315 mm) |
|---|---|
| Foot | 10.5 ft - (3200 mm) |
| Leech | 23.167 ft - (7061 mm) |
| Percentage LP | * 154.31 % |
| Length Perpendicular | * 10.03 ft - (3057 mm) |
| Deck Angle | * 2.69 ° |
| Area | * 120.33 ft² |
| Edit in Calculator | |
Hotfoot 20 - ASYMMETRICAL
| Luff | 25 ft - (7620 mm) |
|---|---|
| Foot | 12 ft - (3658 mm) |
| Leech | 23.5 ft - (7163 mm) |
| Perc LP | * 165 % |
| Area | * 225 ft² |
| Edit in Calculator | |
Hotfoot 20 - ASYMMETRICAL
| Luff | * 24.54 ft - (7480 mm) |
|---|---|
| Foot | * 10.72 ft - (3267 mm) |
| Leech | * 22.58 ft - (6882 mm) |
| Perc LP | * 165 % |
| Area | * 197 ft² |
| Edit in Calculator | |
Hotfoot 20 - ASYMMETRICAL
| Luff | 26.75 ft - (8153 mm) |
|---|---|
| Foot | 18.75 ft - (5715 mm) |
| Leech | 24 ft - (7315 mm) |
| Perc LP | * 165 % |
| Area | * 376 ft² |
| Edit in Calculator | |
