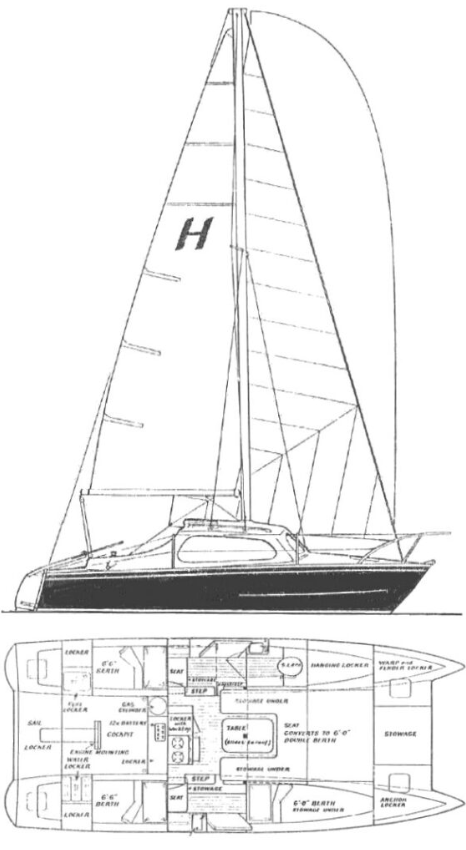

Hirondelle 24
Description
2500 lb, cruising/racing catamaran, 10 ft beam, 22 ft lwl
Construction Details
| Designer | Unknown |
|---|---|
| Length | 24.000 ft |
| LOA | 22.670 ft |
| LWL | 20.000 ft |
| Beam | 10.000 ft |
| Displacement | 2300 lb |
| Max Draft | 4.000 ft |
| Min Draft | 1.250 ft |
The standard boat dimensions
| i | 31 ft |
|---|---|
| j | 8 ft |
| p | 29 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 31 ft | 8 ft | 29 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29 ft - (8839 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 29.88 ft - (9107 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 30.06 ft - (9162 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 134.62 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 30.41 ft - (9269 mm) |
| Foot | * 12.65 ft - (3856 mm) |
| Leech | * 29.01 ft - (8842 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12 ft - (3658 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 182.48 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28 ft - (8534 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 26.5 ft - (8077 mm) |
| Percentage LP | * 106.5 % |
| Length Perpendicular | * 8.52 ft - (2597 mm) |
| Deck Angle | * 4.37 ° |
| Area | * 119.25 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 17.61 ft - (5368 mm) |
| Foot | * 5.75 ft - (1753 mm) |
| Leech | * 15.22 ft - (4639 mm) |
| Perc LP | * 60 |
| Length Perp | * 4.8 |
| Deck Angle | * 18.95 ° |
| Area | * 42.26 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 29.5 ft - (8992 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 27.5 ft - (8382 mm) |
| Percentage LP | * 145.38 % |
| Length Perpendicular | * 11.63 ft - (3545 mm) |
| Deck Angle | * 7.03 ° |
| Area | * 171.55 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 31.41 ft - (9574 mm) |
| Foot | 13.2 ft - (4023 mm) |
| Leech | 27.98 ft - (8528 mm) |
| Perc LP | 165 |
| Area | * 311 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
