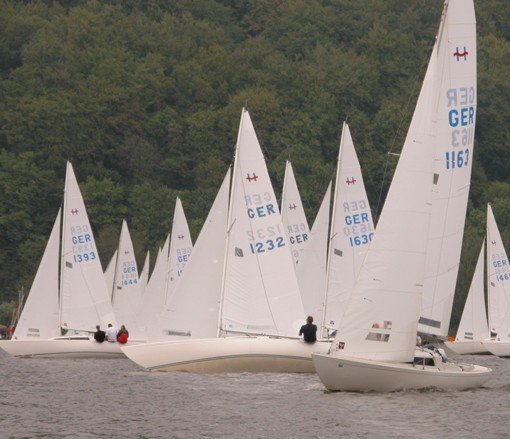

H-Boat
Description
The H-Boat (also styled H-boat or H-vene) is a Finnish-designed, strict one-design fiberglass keelboat that has become one of the most successful and enduring small racer-cruisers, with over 5,000 hulls built since production began in 1970. Designed by Hans Groop in 1967 (winning a Finnish competition for a modern GRP fleet racer with spinnaker), it received minor refinements by Paul Elvstrøm in 1971 and achieved international one-design status in 1977. The "H" derives from Hestia, the Greek goddess of the hearth. It's Europe's largest keelboat class and the second largest internationally, with a vibrant racing scene (World Championships since 1980) primarily in Nordic countries, Germany, Switzerland, and Central Europe, plus scattered fleets in the UK and US. Builders have included Artekno (Finland), Elvstrøm (Denmark), Ott Yacht (Germany), Frauscher (Austria), and currently Saare Yachts (Estonia) for new builds.
Construction Details
| Designer | Hans Groop |
|---|---|
| Builder | Elvstrøm (Denmark) |
| Length | 27.000 ft |
| LOA | 27.250 ft |
| LWL | 20.670 ft |
| Beam | 7.170 ft |
| Displacement | 3190 lb |
| Max Draft | 4.330 ft |
| Min Draft | 0.750 ft |
The standard boat dimensions
| i | 24.93 ft |
|---|---|
| j | 7.92 ft |
| p | 28.54 ft |
| e | 9.84 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 24.93 ft | 7.92 ft | 28.54 ft | 9.84 ft | - | - | - | - |
Documents
Sails
H-Boat - MAINSAIL
| Luff | * 28.54 ft - (8699 mm) |
|---|---|
| Foot | * 9.84 ft - (2999 mm) |
| Leech | * 29.65 ft - (9037 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 29.86 ft - (9101 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 144.95 ft² |
| Edit in Calculator | |
H-Boat - JIBSAIL
| Luff | 24.868 ft - (7580 mm) |
|---|---|
| Foot | 9.285 ft - (2830 mm) |
| Leech | 23.392 ft - (7130 mm) |
| Percentage LP | * 110.23 % |
| Length Perpendicular | * 8.73 ft - (2661 mm) |
| Deck Angle | * 2.31 ° |
| Area | * 108.53 ft² |
| Edit in Calculator | |
H-Boat - GENOA
| Luff | * 24.85 ft - (7574 mm) |
|---|---|
| Foot | * 12.78 ft - (3895 mm) |
| Leech | * 23.38 ft - (7126 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.88 ft - (3621 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 147.6 ft² |
| Edit in Calculator | |
H-Boat - SPINNAKER
| Stays | * 26.45 ft - (8062 mm) |
|---|---|
| MidGirth | * 14.4 ft - (4389 mm) |
| Foot | * 14.4 ft - (4389 mm) |
| Perc LP | * 180 % |
| Area | * 324 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
