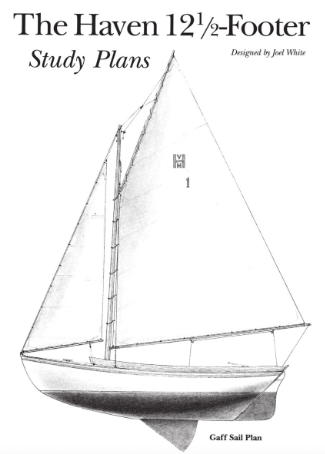

Haven 12 1/2 Gaff Rig
Description
The gaff-rigged Haven 12½, Joel White’s original 1976 interpretation of Nathanael Herreshoff’s iconic 1914 Buzzards Bay 12½-footer, is widely regarded as the most faithful and beautiful reincarnation of that century-old classic. Identical in hull (15′10″ LOA, 6′1″ beam, 1,500 lb. displacement, 9″ draft board-up) to its later Marconi-rigged sibling, it carries a low four-sided gaff mainsail with varnished spruce spars, a self-tacking club-footed jib, and the option of a lace-on topsail, delivering a perfect period silhouette, superior light-air performance, and effortless acceleration in summer breezes while sacrificing only a few degrees of windward ability. Revered for its breathtaking sheer, forgiving manners, surprising speed (it still planes on a reach), and ability to float in a heavy dew, the gaff-rigged Haven remains the choice of traditionalists who want the prettiest, most authentic small daysailer ever drawn, and it continues to be built and cherished worldwide as living maritime art.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
Haven 12 1/2 Gaff Rig - JIBSAIL
| Luff | 12 ft - (3658 mm) |
|---|---|
| Foot | 4.58 ft - (1396 mm) |
| Leech | 10.42 ft - (3176 mm) |
| Length Perpendicular | * 3.93 ft - (1198 mm) |
| Area | * 23.59 ft² |
| Edit in Calculator | |
Haven 12 1/2 Gaff Rig - GAFF MAIN
| Luff | 8.75 ft - (2667 mm) |
|---|---|
| Foot | 11.5 ft - (3505 mm) |
| Leech | 17.5 ft - (5334 mm) |
| Tack Angle | * 80.49 ° |
| Diag (clew/throat) | 13.25 ft - (4039 mm) |
| Head | 8.67 ft - (2643 mm) |
| Area | * 105.36 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
