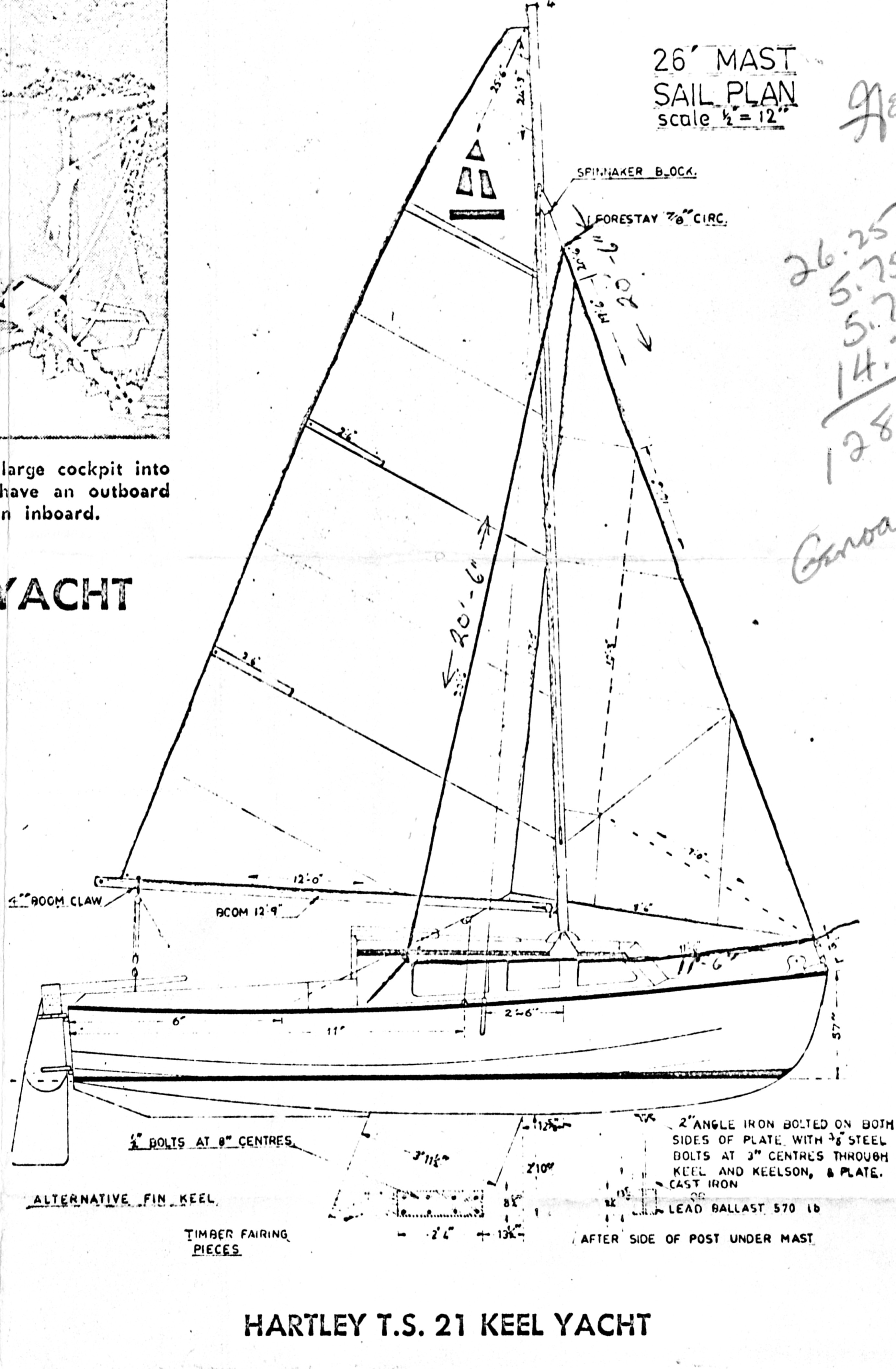

Hartley TS-21
Description
The Hartley TS-21, designed in 1969 by Richard Hartley as the flagship of his revolutionary trailer-sailer series, is a 21 ft plywood/epoxy swing-keel pocket cruiser that delivers blistering performance (SA/D 28–34, routinely planes at 14–16 knots) and genuine week-long family cruising comfort (5 ft 10 in headroom, four adult berths, enclosed head, full galley) in a package that still tows behind a family SUV and launches in 20 minutes. With only 300–500 ever built yet an obsessive following through the Hartley TS18/21 Yacht Club of Victoria, it remains Australia’s fastest, most versatile micro-cruiser—actively raced in one-design fleets, regularly crossing Bass Strait, and still rolling off CNC kits in 2025 for $6,800 AUD, making turn-key classics $9,000–$22,000 USD and new epoxy builds $28,000–$42,000 the smartest “go-fast, go-far, go-now” investment on the planet.
The standard boat dimensions
| i | 19.50 ft |
|---|---|
| j | 7 ft |
| p | 24.75 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 19.50 ft | 7 ft | 24.75 ft | 12 ft | - | - | - | - |
Documents
Sails
Hartley TS-21 - MAINSAIL
| Luff | 24.75 ft - (7544 mm) |
|---|---|
| Foot | 12 ft - (3658 mm) |
| Leech | * 26.94 ft - (8211 mm) |
| Tack Angle | * 88.02 ° |
| Diagonal | * 27.13 ft - (8269 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | 148.3 ft² |
| Edit in Calculator | |
Hartley TS-21 - JIBSAIL
| Luff | 19.5 ft - (5944 mm) |
|---|---|
| Foot | 8.5 ft - (2591 mm) |
| Leech | 17 ft - (5182 mm) |
| Length Perpendicular | 7.39 ft - (2252 mm) |
| Area | 72.09 ft² |
| Edit in Calculator | |
Hartley TS-21 - GENOA
| Luff | 20.5 ft - (6248 mm) |
|---|---|
| Foot | 11.5 ft - (3505 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Length Perpendicular | 11.04 ft - (3365 mm) |
| Area | 113.14 ft² |
| Edit in Calculator | |
Hartley TS-21 - SPINNAKER
| Stays | * 19.68 ft - (5998 mm) |
|---|---|
| MidGirth | * 12.6 ft - (3840 mm) |
| Foot | * 12.6 ft - (3840 mm) |
| Perc LP | * 180 % |
| Area | 210.77 ft² |
| Edit in Calculator | |
