Hartley TS-14
Description
Hartley TS-14 – the legendary “pocket rocket” that launched the entire Australian trailer-sailer revolution and still holds the crown as the most successful micro-cruiser ever designed in the Southern Hemisphere. Designed in 1968 by Richard Hartley (New Zealand) as the bigger brother to the TS-12 and little sister to the iconic TS-16, the TS-14 was created for amateur plywood construction and sold over 3,000 sets of plans worldwide—making it one of the most built 14-footers in history. Thousands were launched from garages across Australia, NZ, South Africa, UK, and the US—most still sailing 50+ years later thanks to bulletproof stitch-and-glue plywood/epoxy construction.
Construction Details
| Designer | Richard Hartley |
|---|---|
| Length | 14.000 ft |
| LOA | 14.000 ft |
| Beam | 6.500 ft |
| Displacement | 600 lb |
| Max Draft | 3.750 ft |
The standard boat dimensions
| i | 13.50 ft |
|---|---|
| j | 5 ft |
| p | 16.50 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 13.50 ft | 5 ft | 16.50 ft | 9 ft | - | - | - | - |

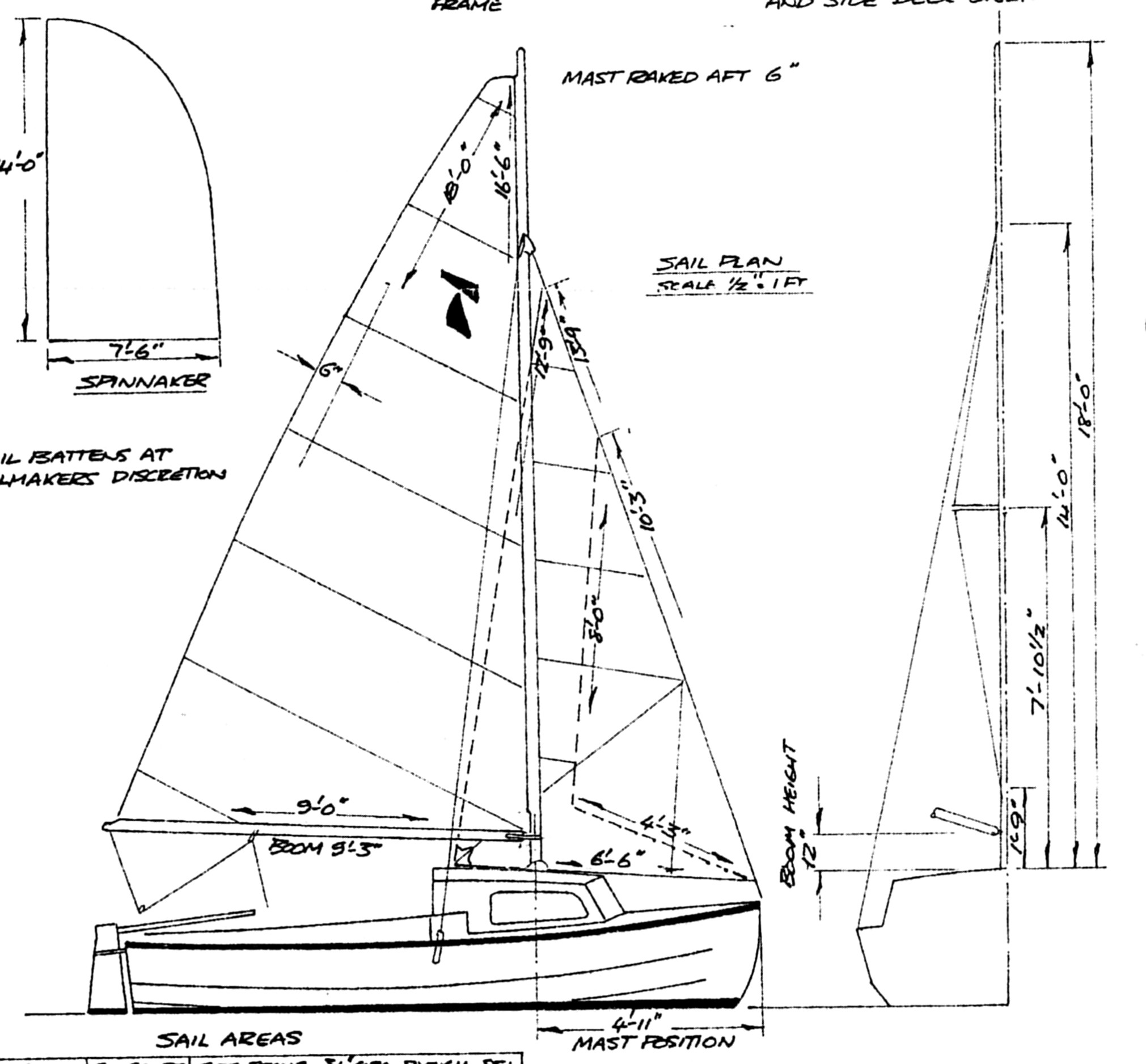

Blueprints
Sails
Hartley TS-14 - MAINSAIL
| Luff | 16.5 ft - (5029 mm) |
|---|---|
| Foot | 9 ft - (2743 mm) |
| Leech | * 17.8 ft - (5425 mm) |
| Tack Angle | * 84.35 ° |
| Diagonal | 18 ft - (5486 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 76.28 ft² |
| Edit in Calculator | |
Hartley TS-14 - JIBSAIL
| Luff | 13.75 ft - (4191 mm) |
|---|---|
| Foot | 6.5 ft - (1981 mm) |
| Leech | 12.75 ft - (3886 mm) |
| Percentage LP | * 120 % |
| Length Perpendicular | * 6 ft - (1829 mm) |
| Deck Angle | * 2.3 ° |
| Area | * 41.25 ft² |
| Edit in Calculator | |
Hartley TS-14 - SPINNAKER
| Stays | * 13.68 ft - (4170 mm) |
|---|---|
| MidGirth | * 9 ft - (2743 mm) |
| Foot | * 9 ft - (2743 mm) |
| Perc LP | * 180 % |
| Area | * 105 ft² |
| Edit in Calculator | |
Hartley TS-14 - STORMJIB
| Luff | 10.25 ft - (3124 mm) |
|---|---|
| Foot | 4.25 ft - (1295 mm) |
| Leech | 8 ft - (2438 mm) |
| Perc LP | * 62.4 % |
| Length Perp | * 3.12 ft - (951 mm) |
| Deck Angle | * 22.41 ° |
| Area | * 16 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
