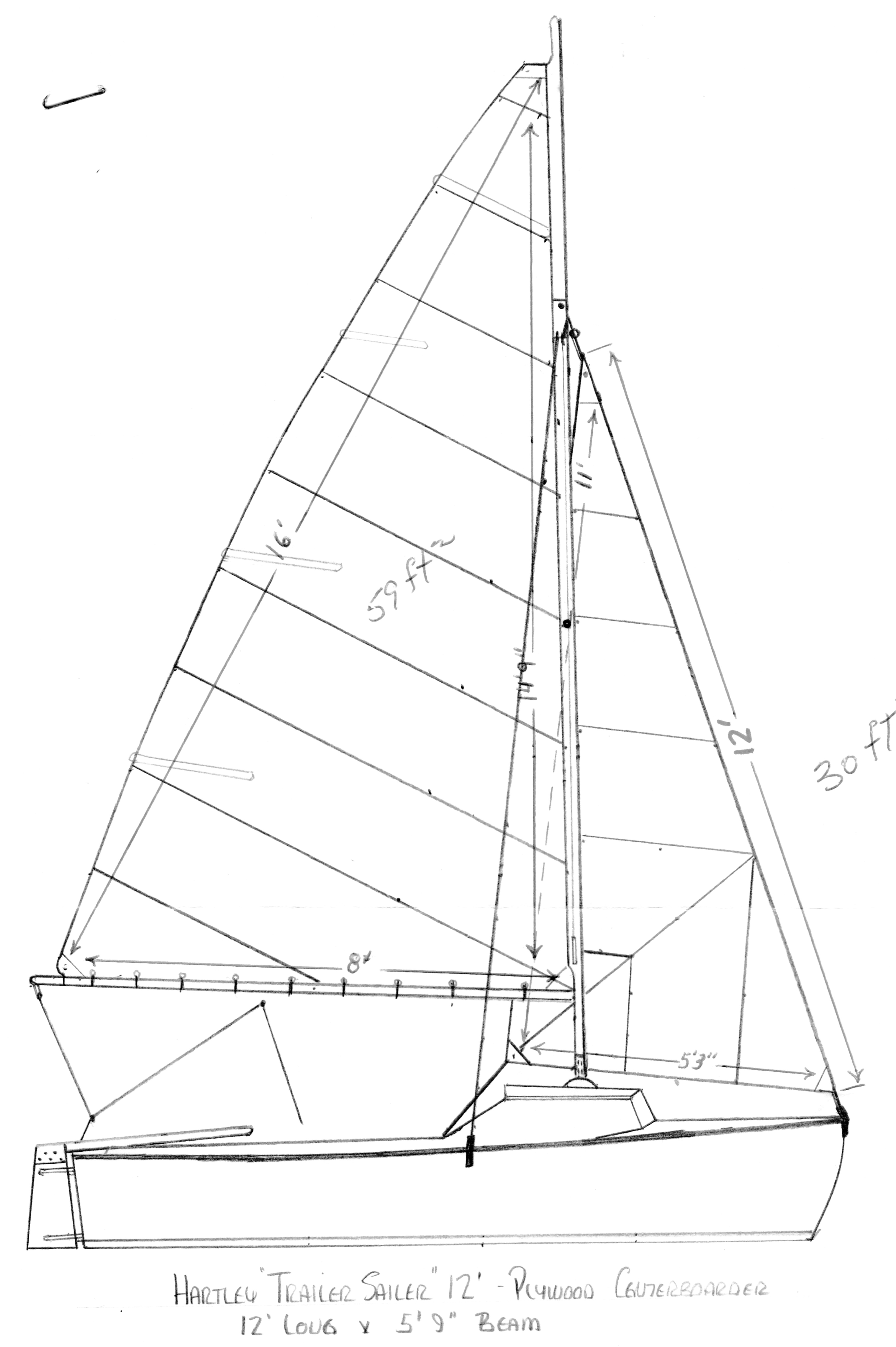

HARTLEY TS-12
Description
The HARTLEY TS-12 is a sailboat.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 12.000 ft |
The standard boat dimensions
| i | 14 ft |
|---|---|
| j | 4 ft |
| p | 14.75 ft |
| e | 8 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 14 ft | 4 ft | 14.75 ft | 8 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 13.83 ft - (4215 mm) |
| Foot | * 6.38 ft - (1945 mm) |
| Leech | * 13.11 ft - (3996 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 6 ft - (1829 mm) |
| Deck Angle | * 4 ° |
| Area | 41.48 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 12 ft - (3658 mm) |
| Foot | 5.25 ft - (1600 mm) |
| Leech | 11 ft - (3353 mm) |
| Length Perpendicular | 4.81 ft - (1466 mm) |
| Area | 28.85 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 13.83 ft - (4215 mm) |
| MidGirth | * 7.2 ft - (2195 mm) |
| Foot | * 7.2 ft - (2195 mm) |
| Perc LP | * 180 |
| Area | 84.64 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 14.75 ft - (4496 mm) |
| Foot | 8 ft - (2438 mm) |
| Leech-AftHdBd | * 16.39 ft - (4996 mm) |
| Tack Ang | * 87.98 ° |
| Diag (clew/head) | * 16.53 ft - (5038 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | 58.91 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
