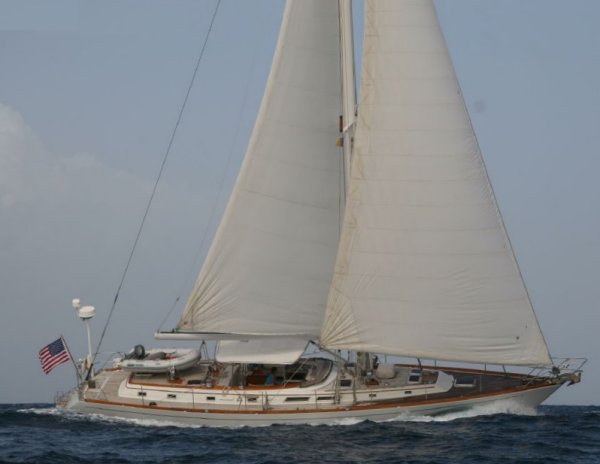

GULFSTAR 60
Description
The GULFSTAR 60 is a luxury yacht designed by V.S. Lazzara. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. Built for luxury cruising anywhere in the world with style and comfort.
Construction Details
| Designer | V.S. Lazzara |
|---|---|
| Length | 61.000 ft |
| LOA | 60.500 ft |
| LWL | 48.330 ft |
| Beam | 16.000 ft |
| Displacement | 60020 lb |
| Max Draft | 9.000 ft |
The standard boat dimensions
| i | 79.60 ft |
|---|---|
| j | 22.70 ft |
| p | 69.90 ft |
| e | 21.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 79.60 ft | 22.70 ft | 69.90 ft | 21.50 ft | - | - | - | - |
Sails
GULFSTAR 60 - MAINSAIL
| Luff | * 69.9 ft - (21306 mm) |
|---|---|
| Foot | * 21.5 ft - (6553 mm) |
| Leech | * 72.14 ft - (21988 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 72.41 ft - (22071 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 766.18 ft² |
| Edit in Calculator | |
GULFSTAR 60 - JIBSAIL
| Luff | * 66.22 ft - (20184 mm) |
|---|---|
| Foot | * 29.54 ft - (9004 mm) |
| Leech | * 58.53 ft - (17840 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 26.1 ft - (7955 mm) |
| Deck Angle | * 12 ° |
| Area | * 864.22 ft² |
| Edit in Calculator | |
GULFSTAR 60 - GENOA
| Luff | * 78.63 ft - (23966 mm) |
|---|---|
| Foot | * 36.22 ft - (11040 mm) |
| Leech | * 74.52 ft - (22714 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 34.05 ft - (10378 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 1338.73 ft² |
| Edit in Calculator | |
GULFSTAR 60 - DRIFTER
| Luff | * 78.63 ft - (23966 mm) |
|---|---|
| Foot | * 37.54 ft - (11442 mm) |
| Leech | * 71.46 ft - (21781 mm) |
| Perc LP | * 150 % |
| Length Perp | * 34.05 ft - (10378 mm) |
| Deck Angle | * 8.98 ° |
| Area | * 1338.72 ft² |
| Edit in Calculator | |
GULFSTAR 60 - ASYMMETRICAL
| Luff | * 78.63 ft - (23966 mm) |
|---|---|
| Foot | * 37.46 ft - (11418 mm) |
| Leech | * 72.34 ft - (22049 mm) |
| Perc LP | * 165 % |
| Area | * 2209 ft² |
| Edit in Calculator | |
GULFSTAR 60 - STORMJIB
| Luff | * 45.53 ft - (13878 mm) |
|---|---|
| Foot | * 16.61 ft - (5063 mm) |
| Leech | * 38.51 ft - (11738 mm) |
| Perc LP | * 60 % |
| Length Perp | * 13.62 ft - (4151 mm) |
| Deck Angle | * 19.01 ° |
| Area | * 310.04 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
