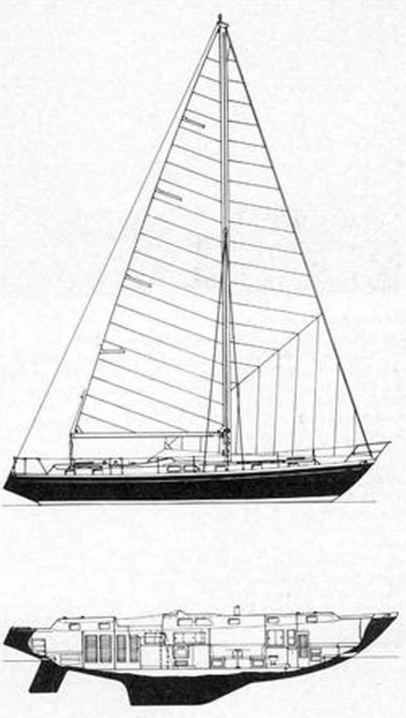

Gulfstar 50 Sloop
Description
32500 lbs. Disp. 9600 lbs. Ballast 39' LWL 13'8" Beam 5'6" Draft
The standard boat dimensions
| i | 50.90 ft |
|---|---|
| j | 19.10 ft |
| p | 43.08 ft |
| e | 19 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 50.90 ft | 19.10 ft | 43.08 ft | 19 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.08 ft - (13131 mm) |
| Foot | * 19 ft - (5791 mm) |
| Leech | * 46.18 ft - (14076 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 46.47 ft - (14164 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 418.44 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 43.49 ft - (13256 mm) |
| Foot | * 26.06 ft - (7943 mm) |
| Leech | * 36.74 ft - (11198 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 21.96 ft - (6693 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 477.49 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 51.65 ft - (15743 mm) |
| Foot | * 31.5 ft - (9601 mm) |
| Leech | * 48.04 ft - (14643 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 28.65 ft - (8733 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 739.93 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 51.65 ft - (15743 mm) |
| Foot | * 31.52 ft - (9607 mm) |
| Leech | * 47.52 ft - (14484 mm) |
| Perc LP | * 165 % |
| Area | * 1221 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 29.9 ft - (9114 mm) |
| Foot | * 14.87 ft - (4532 mm) |
| Leech | * 23.42 ft - (7138 mm) |
| Perc LP | * 60 % |
| Length Perp | * 11.46 ft - (3493 mm) |
| Deck Angle | * 19.02 ° |
| Area | * 171.33 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
