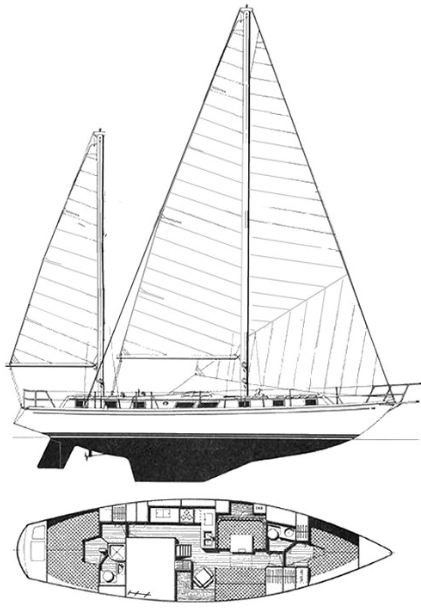

Gulfstar 50 Ketch
Description
The GULFSTAR 50 KETCH is a luxury yacht designed by V.S. Lazzara. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. Built for luxury cruising anywhere in the world with style and comfort.
Construction Details
| Designer | V.S. Lazzara |
|---|---|
| Length | 50.000 ft |
| LOA | 50.000 ft |
| LWL | 39.670 ft |
| Beam | 13.670 ft |
| Displacement | 35000 lb |
| Max Draft | 5.500 ft |
The standard boat dimensions
| i | 50.90 ft |
|---|---|
| j | 19.10 ft |
| p | 43.08 ft |
| e | 15.29 ft |
| p2 | 27 ft |
| e2 | 11 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 50.90 ft | 19.10 ft | 43.08 ft | 15.29 ft | 27 ft | 11 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.08 ft - (13131 mm) |
| Foot | * 15.29 ft - (4660 mm) |
| Leech | * 44.93 ft - (13695 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 45.21 ft - (13780 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 338.48 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 43.49 ft - (13256 mm) |
| Foot | * 26.06 ft - (7943 mm) |
| Leech | * 36.74 ft - (11198 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 21.96 ft - (6693 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 477.49 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 28.25 ft - (8611 mm) |
| Leech | 48 ft - (14630 mm) |
| Percentage LP | * 135.03 % |
| Length Perpendicular | * 25.79 ft - (7861 mm) |
| Deck Angle | * 3.5 ° |
| Area | * 670.66 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 51.65 ft - (15743 mm) |
| Foot | * 31.5 ft - (9601 mm) |
| Leech | * 48.04 ft - (14643 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 28.65 ft - (8733 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 739.93 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 51.65 ft - (15743 mm) |
| Foot | * 32.94 ft - (10040 mm) |
| Leech | * 45.54 ft - (13881 mm) |
| Perc LP | * 150 % |
| Length Perp | * 28.65 ft - (8733 mm) |
| Deck Angle | * 9 ° |
| Area | * 739.92 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 51.65 ft - (15743 mm) |
| Foot | * 31.52 ft - (9607 mm) |
| Leech | * 47.52 ft - (14484 mm) |
| Perc LP | * 165 % |
| Area | * 1221 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 27 ft - (8230 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 28.54 ft - (8699 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 28.8 ft - (8778 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area (no Roach) | * 153.45 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 29.9 ft - (9114 mm) |
| Foot | * 14.87 ft - (4532 mm) |
| Leech | * 23.42 ft - (7138 mm) |
| Perc LP | * 60 % |
| Length Perp | * 11.46 ft - (3493 mm) |
| Deck Angle | * 19.02 ° |
| Area | * 171.33 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 16.61 ft - (5063 mm) |
| Foot | * 15.27 ft - (4654 mm) |
| Leech | * 13.84 ft - (4218 mm) |
| Length Perp | * 13.84 ft - (4218 mm) |
| Tack Angle | * -25 ° |
| Area | * 99 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
