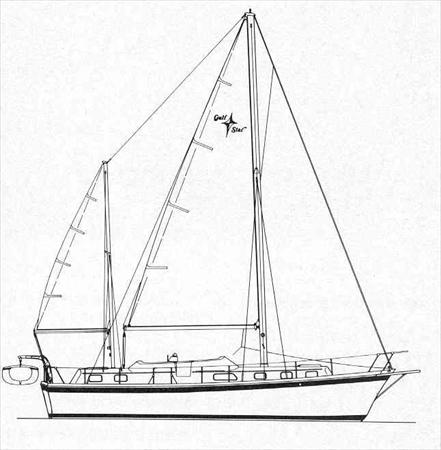

Gulfstar 44 Motorsailer Ketch
Description
22500 lbs. Disp. 3500 lbs. Ballast 39'6" LWL 14' Beam 4' Draft
The standard boat dimensions
| i | 45.08 ft |
|---|---|
| j | 16 ft |
| p | 37.25 ft |
| e | 15 ft |
| p2 | 27.58 ft |
| e2 | 9 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 45.08 ft | 16 ft | 37.25 ft | 15 ft | 27.58 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37.25 ft - (11354 mm) |
| Foot | * 15 ft - (4572 mm) |
| Leech | * 39.39 ft - (12006 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 39.67 ft - (12091 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 287.4 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.27 ft - (11665 mm) |
| Foot | * 21.59 ft - (6581 mm) |
| Leech | * 32.65 ft - (9952 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 18.4 ft - (5608 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 352.05 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 44.25 ft - (13487 mm) |
| Foot | 24.75 ft - (7544 mm) |
| Leech | 40.75 ft - (12421 mm) |
| Percentage LP | * 140.69 % |
| Length Perpendicular | * 22.51 ft - (6861 mm) |
| Deck Angle | * 5.01 ° |
| Area | * 498.09 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 45.45 ft - (13853 mm) |
| Foot | * 26.18 ft - (7980 mm) |
| Leech | * 42.43 ft - (12933 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24 ft - (7315 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 545.39 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 46 ft - (14021 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 43 ft - (13106 mm) |
| Perc LP | * 165 % |
| Area | * 932 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 27.58 ft - (8406 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 28.44 ft - (8669 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 28.71 ft - (8751 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area (no Roach) | * 126.82 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
