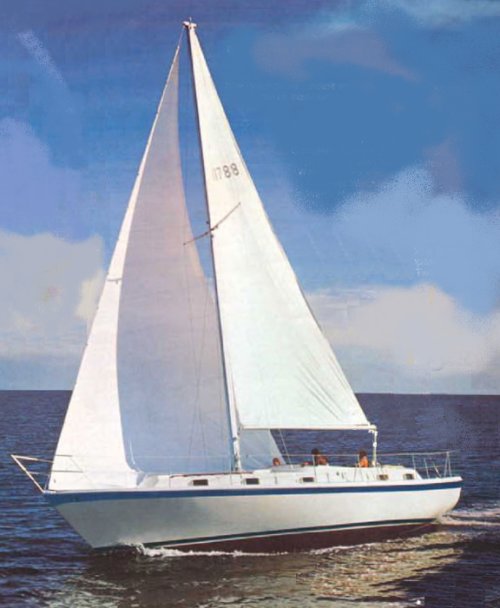

Gulfstar 41
Description
22000 lbs. Disp. 7600 lbs. Ballast 33' LWL 12' Beam 5' Draft
Construction Details
| Designer | V.S. Lazzara |
|---|---|
| Length | 41.000 ft |
| LOA | 41.000 ft |
| LWL | 33.000 ft |
| Beam | 12.000 ft |
| Displacement | 22000 lb |
| Max Draft | 4.830 ft |
The standard boat dimensions
| i | 45 ft |
|---|---|
| j | 17 ft |
| p | 38.33 ft |
| e | 16.08 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 45 ft | 17 ft | 38.33 ft | 16.08 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38.33 ft - (11683 mm) |
| Foot | * 16.08 ft - (4901 mm) |
| Leech | * 40.77 ft - (12427 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 41.05 ft - (12512 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 316.46 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.48 ft - (11729 mm) |
| Foot | * 23.23 ft - (7081 mm) |
| Leech | * 32.48 ft - (9900 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.55 ft - (5959 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 376.18 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 45.7 ft - (13929 mm) |
| Foot | * 28.07 ft - (8556 mm) |
| Leech | * 42.47 ft - (12945 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.5 ft - (7772 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 582.64 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 45.7 ft - (13929 mm) |
| Foot | * 28.05 ft - (8550 mm) |
| Leech | * 42.04 ft - (12814 mm) |
| Perc LP | * 165 % |
| Area | * 961 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 26.46 ft - (8065 mm) |
| Foot | * 13.26 ft - (4042 mm) |
| Leech | * 20.68 ft - (6303 mm) |
| Perc LP | * 60 % |
| Length Perp | * 10.2 ft - (3109 mm) |
| Deck Angle | * 19.01 ° |
| Area | * 134.96 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
