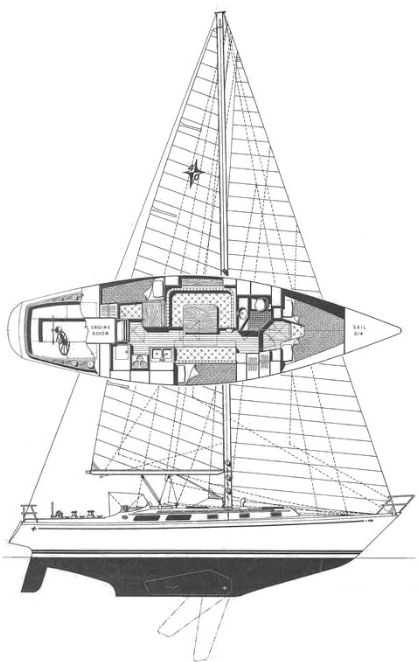

Gulfstar 40(Hood)
Description
The Gulfstar 40 (Hood) is a rare, performance-oriented American cruising sailboat from Gulfstar's early transitional period, designed as a true performance cruiser/racer with classic lines, solid sailing characteristics, and a reputation as one of the best-performing models from the builder—distinct from the later center-cockpit Gulfstar 40 CC/Sailmaster (Lazzara-designed, charter-focused). Designer: Ted Hood (renowned for Hood Sailmakers, Little Harbor yachts, and similar Bristol-inspired designs; this was a custom collaboration during his influence as a Gulfstar dealer). Year of Introduction: 1976. Production History: Built by Gulfstar Yachts in St. Petersburg/Tampa Bay, Florida, from 1976 to 1978, with only a very limited run (estimates of fewer than 20 to around 19 hulls total), reflecting Gulfstar's brief experimentation with outsourced higher-performance designs before returning to in-house Lazzara models; quality was solid for the era with teak interiors and fiberglass construction, though early Gulfstars can show blister/osmosis issues (always survey the hull/keel joint thoroughly). Key Features: Aft-cockpit masthead sloop rig with a modern fin keel (or optional centerboard/shoal draft for versatility in shallower waters), responsive and quick handling with excellent upwind ability, good speed in moderate breezes (often 10+ knots), and a comfortable, cushy ride that handles chop without pounding; traditional layout sleeping 6 in two cabins (V-berth forward, settees/convertibles in salon, aft cabin), large cockpit (over 8 ft long), forepeak anchor storage, and ample overall volume; heavier displacement provides stiffness, good righting ability, and bluewater potential with excellent motion comfort in seas.
Construction Details
| Designer | Ted Hood |
|---|---|
| Builder | Gulfstar Yachts |
| Length | 40.083 ft |
| LOA | 4.083 ft |
| LWL | 32.500 ft |
| Beam | 12.080 ft |
| Displacement | 20000 lb |
| Ballast | 8500 lb |
| Max Draft | 6.300 ft |
| Min Draft | 3.920 ft |
| Year Built | 1976 |
The standard boat dimensions
| i | 53 ft |
|---|---|
| j | 16.80 ft |
| p | 46.50 ft |
| e | 13.75 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 53 ft | 16.80 ft | 46.50 ft | 13.75 ft | - | - | - | - |
Sails
Gulfstar 40(Hood) - MAINSAIL
| Luff | * 46.5 ft - (14173 mm) |
|---|---|
| Foot | * 13.75 ft - (4191 mm) |
| Leech | * 47.76 ft - (14557 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 48.03 ft - (14640 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 329.57 ft² |
| Edit in Calculator | |
Gulfstar 40(Hood) - JIBSAIL
| Luff | * 44.48 ft - (13558 mm) |
|---|---|
| Foot | * 22.22 ft - (6773 mm) |
| Leech | * 38.68 ft - (11790 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.32 ft - (5889 mm) |
| Deck Angle | * 12 ° |
| Area | * 429.73 ft² |
| Edit in Calculator | |
Gulfstar 40(Hood) - GENOA
| Luff | * 52.82 ft - (16100 mm) |
|---|---|
| Foot | * 27.1 ft - (8260 mm) |
| Leech | * 49.71 ft - (15152 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.2 ft - (7681 mm) |
| Deck Angle | * 4 ° |
| Area | * 665.51 ft² |
| Edit in Calculator | |
Gulfstar 40(Hood) - ASYMMETRICAL
| Luff | * 52.82 ft - (16100 mm) |
|---|---|
| Foot | * 27.72 ft - (8449 mm) |
| Leech | * 48.59 ft - (14810 mm) |
| Perc LP | * 165 % |
| Area | * 1098 ft² |
| Edit in Calculator | |
Gulfstar 40(Hood) - STORMJIB
| Luff | * 30.58 ft - (9321 mm) |
|---|---|
| Foot | * 12.55 ft - (3825 mm) |
| Leech | * 25.21 ft - (7684 mm) |
| Perc LP | * 60 % |
| Length Perp | * 10.08 ft - (3072 mm) |
| Deck Angle | * 18.96 ° |
| Area | * 154.15 ft² |
| Edit in Calculator | |
