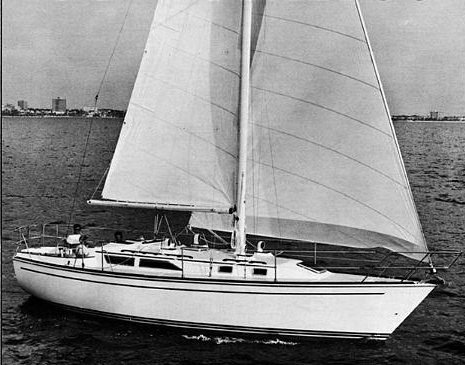

Gulfstar 39
Description
The GULFSTAR 39 is a cruising yacht designed by V.S. Lazzara. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | V.S. Lazzara |
|---|---|
| Length | 39.000 ft |
| LOA | 36.080 ft |
| LWL | 30.330 ft |
| Beam | 12.000 ft |
| Displacement | 14250 lb |
| Max Draft | 4.830 ft |
The standard boat dimensions
| i | 47 ft |
|---|---|
| j | 16.50 ft |
| p | 40.75 ft |
| e | 14.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 47 ft | 16.50 ft | 40.75 ft | 14.50 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40.75 ft - (12421 mm) |
| Foot | * 14.5 ft - (4420 mm) |
| Leech | * 42.49 ft - (12951 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 42.77 ft - (13036 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 304.08 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 39.85 ft - (12146 mm) |
| Foot | * 22.22 ft - (6773 mm) |
| Leech | * 34.07 ft - (10385 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 18.98 ft - (5785 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 378.15 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 47.32 ft - (14423 mm) |
| Foot | * 26.96 ft - (8217 mm) |
| Leech | * 44.21 ft - (13475 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24.75 ft - (7544 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 585.61 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 47.32 ft - (14423 mm) |
| Foot | * 27.22 ft - (8297 mm) |
| Leech | * 43.53 ft - (13268 mm) |
| Perc LP | * 165 % |
| Area | * 966 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 27.4 ft - (8352 mm) |
| Foot | * 12.62 ft - (3847 mm) |
| Leech | * 21.93 ft - (6684 mm) |
| Perc LP | * 60 % |
| Length Perp | * 9.9 ft - (3018 mm) |
| Deck Angle | * 19.01 ° |
| Area | * 135.59 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
