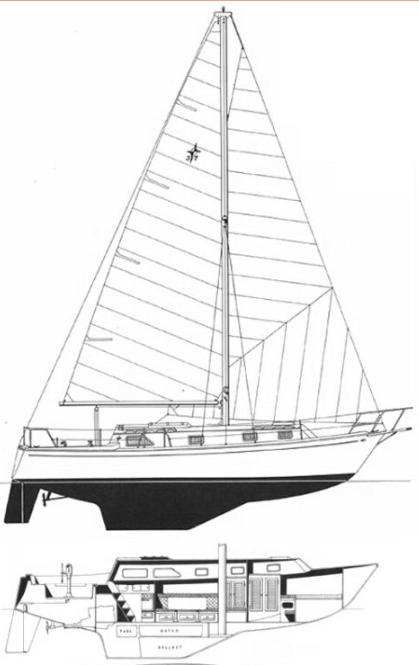

Gulfstar 37
Description
The GULFSTAR 37 is a cruising yacht designed by V.S. Lazzara. Built by Gulfstar Yachts (founded by Vince Lazzara in St. Petersburg/Tampa Bay, Florida) from 1976 to 1979. Production was relatively short, with a limited number produced during Gulfstar's transition toward higher-performance designs and away from earlier motorsailer-heavy focus. The company shifted more to powerboats by the mid-1980s and ceased sailboat production entirely by 1987 (sold to Viking Yachts).
Construction Details
| Designer | V.S. Lazzara |
|---|---|
| Builder | Gulfstar Yachts |
| Length | 37.000 ft |
| LOA | 37.000 ft |
| LWL | 32.000 ft |
| Beam | 11.830 ft |
| Displacement | 19500 lb |
| Ballast | 8000 lb |
| Max Draft | 4.670 ft |
| Year Built | 1976 |
The standard boat dimensions
| i | 46.16 ft |
|---|---|
| j | 15.58 ft |
| p | 39.29 ft |
| e | 13 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 46.16 ft | 15.58 ft | 39.29 ft | 13 ft | - | - | - | - |
Sails
Gulfstar 37 - MAINSAIL
| Luff | * 39.29 ft - (11976 mm) |
|---|---|
| Foot | * 13 ft - (3962 mm) |
| Leech | * 40.68 ft - (12399 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 40.95 ft - (12482 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 263.82 ft² |
| Edit in Calculator | |
Gulfstar 37 - JIBSAIL
| Luff | * 38.97 ft - (11878 mm) |
|---|---|
| Foot | * 20.83 ft - (6349 mm) |
| Leech | * 33.54 ft - (10223 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 17.92 ft - (5462 mm) |
| Deck Angle | * 12 ° |
| Area | * 349.17 ft² |
| Edit in Calculator | |
Gulfstar 37 - GENOA
| Luff | 45.25 ft - (13792 mm) |
|---|---|
| Foot | 22 ft - (6706 mm) |
| Leech | 42 ft - (12802 mm) |
| Percentage LP | * 130.3 % |
| Length Perpendicular | * 20.3 ft - (6187 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 459.27 ft² |
| Edit in Calculator | |
Gulfstar 37 - GENOA
| Luff | 45.25 ft - (13792 mm) |
|---|---|
| Foot | 21.083 ft - (6426 mm) |
| Leech | 42 ft - (12802 mm) |
| Percentage LP | * 125.1 % |
| Length Perpendicular | * 19.49 ft - (5941 mm) |
| Deck Angle | * 3.78 ° |
| Area | * 440.91 ft² |
| Edit in Calculator | |
Gulfstar 37 - GENOA
| Luff | * 46.28 ft - (14106 mm) |
|---|---|
| Foot | * 25.32 ft - (7718 mm) |
| Leech | * 43.37 ft - (13219 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 23.37 ft - (7123 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 540.77 ft² |
| Edit in Calculator | |
Gulfstar 37 - ASYMMETRICAL
| Luff | * 46.28 ft - (14106 mm) |
|---|---|
| Foot | * 25.71 ft - (7836 mm) |
| Leech | * 42.58 ft - (12978 mm) |
| Perc LP | * 165 % |
| Area | * 892 ft² |
| Edit in Calculator | |
Gulfstar 37 - STORMJIB
| Luff | * 26.8 ft - (8169 mm) |
|---|---|
| Foot | * 11.81 ft - (3600 mm) |
| Leech | * 21.7 ft - (6614 mm) |
| Perc LP | * 60.01 % |
| Length Perp | * 9.35 ft - (2850 mm) |
| Deck Angle | * 19.02 ° |
| Area | * 125.27 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
