GREY SEAL

Description

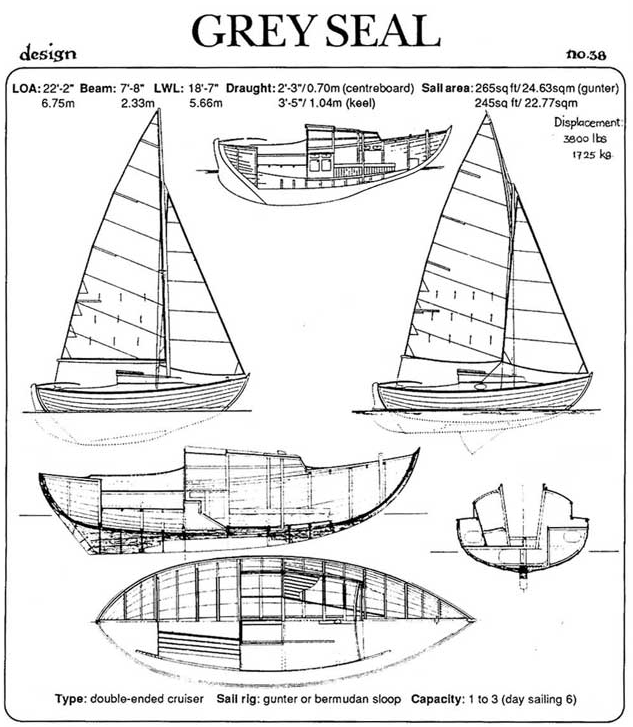

The GREY SEAL is a sailboat designed by Iain Oughtred.

Sail calculations are not available for this boat as some dimensions are missing.

Construction Details

Designer Iain Oughtred
Length 24.000 ft

The standard boat dimensions

i -
j -
p -
e -
p2 -
e2 -

Sails

Sail Type JIBSAIL
Luff 19.67 ft - (5995 mm)
Foot 9 ft - (2743 mm)
Leech 17.167 ft - (5233 mm)
Length Perpendicular * 7.85 ft - (2393 mm)
Area * 77.2 ft²
Sail Type GUNTER
Luff 12.33 ft - (3758 mm)
Foot 11.25 ft - (3429 mm)
Leech 26.33 ft - (8025 mm)
Head * 86.16 ft - (26262 mm)
Diag (clew/throat) 16.125 ft - (4915 mm)
Tack Angle 13 °
Area * 141.25 ft²
Sail Type GAFF MAIN
Luff 13.5 ft - (4115 mm)
Foot 12 ft - (3658 mm)
Leech 25.5 ft - (7772 mm)
Head * 84.92 ft - (25884 mm)
Diag (clew/throat) 17.25 ft - (5258 mm)
Tack Angle 12.5 °
Area * 176.66 ft²
Sail Type JIBSAIL
Luff 19.75 ft - (6020 mm)
Foot 9 ft - (2743 mm)
Leech 17.5 ft - (5334 mm)
Length Perpendicular * 7.97 ft - (2429 mm)
Area * 78.75 ft²

Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
