Graces Tender
Description
less than a 100 lbs
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | 8 ft |
|---|---|
| j | - |
| p | - |
| e | 6 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 8 ft | - | - | 6 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)

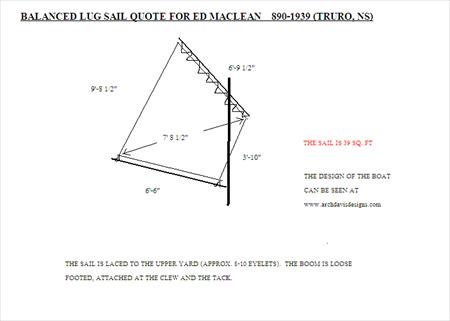

| Sail Type | LUGSAIL |
|---|---|
| Luff | 3.83 ft - (1167 mm) |
| Foot | 6.5 ft - (1981 mm) |
| Leech | 9.71 ft - (2960 mm) |
| Tack Angle | * 92.91 ° |
| Diag (clew/throat) | 7.71 ft - (2350 mm) |
| Head | 6.79 ft - (2070 mm) |
| Area | * 38.45 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
