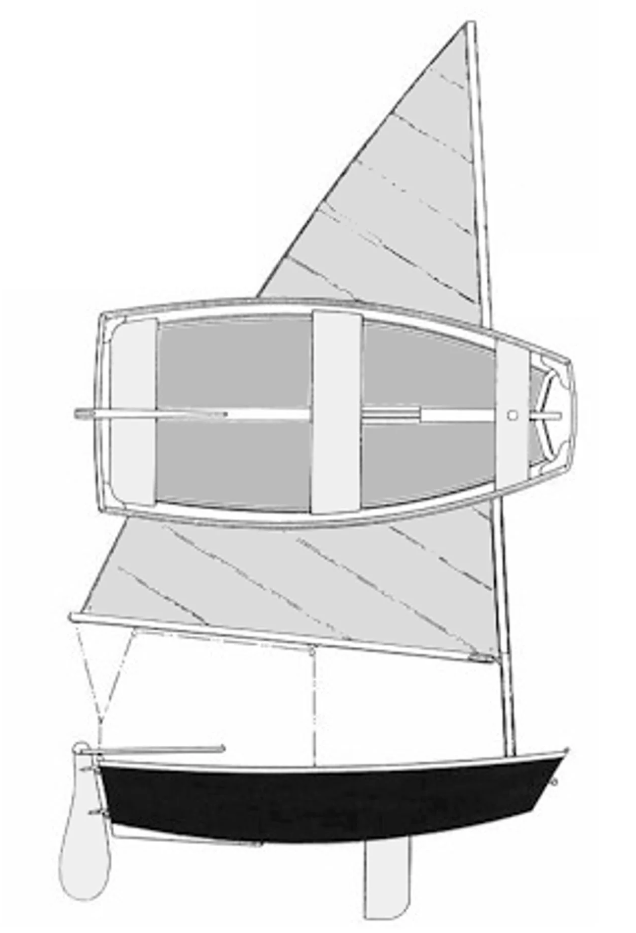

Glen-L Sabotina
Description
The Sabotina is a compact, beginner-friendly 7-foot-10-inch pram dinghy from Glen-L Marine, designed as an affordable entry into boatbuilding and sailing. Inspired by the classic Sabot racing dinghy (and sharing its rig and rudder), it's perfect for children, solo adults, or as a yacht tender. Its V-bottom chined hull offers stability, easy rowing, and responsive sailing in protected waters like ponds, lakes, or harbors. Weighing just 50–70 lbs, it's highly portable—cartop or stow in a car trunk—and versatile for towing, rowing, or powering with a small outboard. The design prioritizes simplicity, with options for traditional wood planking or modern stitch-and-glue plywood for quick builds.
Construction Details
| Designer | Glen L. Witt |
|---|---|
| Length | 7.833 ft |
| LOA | 7.833 ft |
| Beam | 3.833 ft |
| Displacement | 70 lb |
| Max Draft | 2.200 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 10.83 ft |
| e | 7 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 10.83 ft | 7 ft | - | - | - | - |
Sails
Glen-L Sabotina - MAINSAIL
| Luff | * 10.83 ft - (3301 mm) |
|---|---|
| Foot | * 7 ft - (2134 mm) |
| Leech | * 12.49 ft - (3807 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 12.69 ft - (3868 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 39.867 ft² |
| Comments | Add a Sleeve at the luff that slides down over the mast. |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
