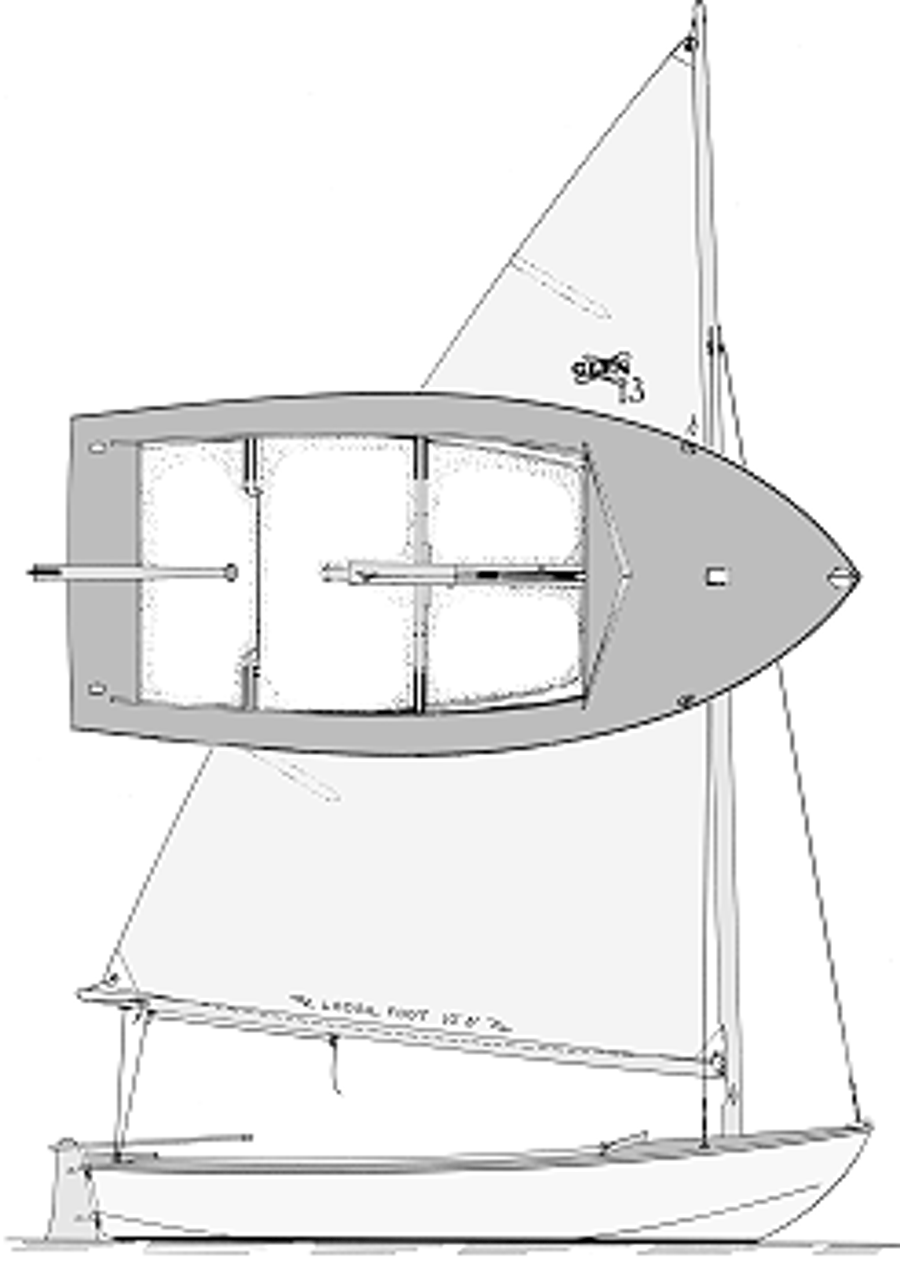

Glen L 13
Description
The Glen-L 13, a spirited 13-foot stitch-and-glue plywood daysailer designed by Glen L. Witt in the early 1960s and offered through Glen-L Marine Designs, stands as a timeless junior trainer, tender, or solo pocket cruiser—perfect for lakes, bays, or sheltered coastal waters where simplicity, portability, and fun reign supreme. Measuring 13 feet LOA with a 5-foot beam and 6-inch draft (daggerboard up; 2'6" down), it displaces just 175 pounds (no ballast—crew weight provides stability), making it car-toppable, trailerable behind a bike, or stowable in a garage corner.
Construction Details
| Designer | Glen L. Witt |
|---|---|
| Length | 12.750 ft |
| Beam | 5.000 ft |
| Displacement | 260 lb |
| Max Draft | 3.500 ft |
| Min Draft | 0.750 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 17 ft |
| e | 10.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 17 ft | 10.25 ft | - | - | - | - |
Documents
Sails
Glen L 13 - MAINSAIL
| Luff | 17 ft - (5182 mm) |
|---|---|
| Foot | 6.67 ft - (2033 mm) |
| Leech | * 18.34 ft - (5590 mm) |
| Tack Angle | * 92.21 ° |
| Diagonal | 18.5 ft - (5639 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 58.9 ft² |
| Edit in Calculator | |
Glen L 13 - MAINSAIL
| Luff | 17 ft - (5182 mm) |
|---|---|
| Foot | 10.25 ft - (3124 mm) |
| Leech | * 18.29 ft - (5575 mm) |
| Tack Angle | * 81.45 ° |
| Diagonal | 18.5 ft - (5639 mm) |
| Head (inches) | 4 in - (102 mm) |
| Area | * 88.54 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
