GEMINI 3200
Description
7000 lbs. Disp. 27'6" LWL 14' Beam 1'6" Draft board up 4'6" Draft board down

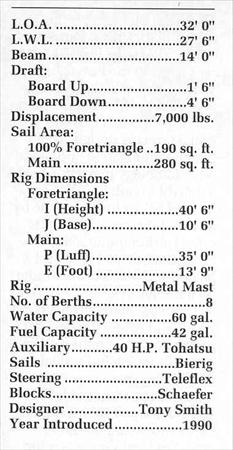

Construction Details
| Designer | Tony Smith |
|---|---|
| Length | 32.000 ft |
| LOA | 31.990 ft |
| LWL | 27.490 ft |
| Beam | 14.010 ft |
| Displacement | 7000 lb |
| Max Draft | 4.490 ft |
| Min Draft | 1.510 ft |
The standard boat dimensions
| i | 40.50 ft |
|---|---|
| j | 10.50 ft |
| p | 35 ft |
| e | 13.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.50 ft | 10.50 ft | 35 ft | 13.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35 ft - (10668 mm) |
| Foot | * 13.75 ft - (4191 mm) |
| Leech-AftHdBd | * 36.87 ft - (11238 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 37.15 ft - (11323 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 248.15 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.75 ft - (12116 mm) |
| Foot | * 16.61 ft - (5063 mm) |
| Leech | * 37.9 ft - (11552 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15.75 ft - (4801 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 313.02 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.47 ft - (10202 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Leech | * 29.98 ft - (9138 mm) |
| Percentage LP | * 115.05 % |
| Length Perpendicular | * 12.08 ft - (3682 mm) |
| Deck Angle | * 12 ° |
| Area | * 202.13 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 38.75 ft - (11811 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Leech | 36.25 ft - (11049 mm) |
| Percentage LP | * 120.29 % |
| Length Perpendicular | * 12.63 ft - (3850 mm) |
| Deck Angle | * 6.16 ° |
| Area | * 244.68 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 38.75 ft - (11811 mm) |
| Foot | 15.083 ft - (4597 mm) |
| Leech | 36.5 ft - (11125 mm) |
| Percentage LP | * 135.14 % |
| Length Perpendicular | * 14.19 ft - (4325 mm) |
| Deck Angle | * 5.31 ° |
| Area | * 274.88 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 16.58 ft - (5054 mm) |
| Leech | 36.25 ft - (11049 mm) |
| Percentage LP | * 149.52 % |
| Length Perpendicular | * 15.7 ft - (4785 mm) |
| Deck Angle | * 4.21 ° |
| Area | * 298.32 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 39.75 ft - (12116 mm) |
| Foot | * 17.32 ft - (5279 mm) |
| Leech | * 36.57 ft - (11147 mm) |
| Perc LP | * 165 |
| Area | * 516 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
