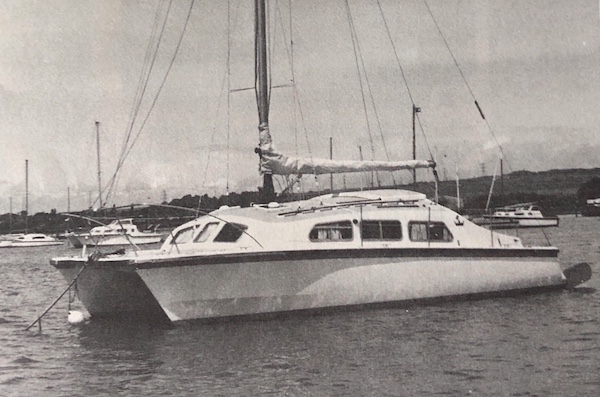

Gemini 31 (3000)
Description
The Gemini 31 (also known as the Gemini 3000), a pioneering American-built cruising catamaran designed by British multihull enthusiast Tony Smith and produced by Performance Cruising Inc. from 1981 to 1990, rose from the ashes of a devastating factory fire that destroyed Smith's prior Telstar trimaran molds, repurposing the lines of the 1969 Aristocat 30 by Musters and Shaw to create the first U.S. production cat of its kind. Measuring 30 feet 9 inches in length overall (LOA) with a narrow 14-foot beam for easy marina berthing and trailering, it features a lightweight fiberglass hull (displacement around 6,200 pounds), shallow draft of 1 foot 6 inches with boards up (4 feet down), and a fractional sloop rig with 420 square feet of sail area, delivering spirited performance in light airs while prioritizing stability and coastal seaworthiness over high-speed racing. Accommodations include standing headroom (6 feet 2 inches), a saloon with U-shaped galley, nav station, two private double cabins fore and aft, and a convertible dinette for up to six berths, all in a compact yet airy layout ideal for couples or small families embarking on extended voyages. Powered by an outboard-equipped leg-drive system (typically a 30-35 hp Mercury or Tohatsu), it offers efficient motoring at 6-7 knots; over 150 hulls were built, earning acclaim for affordability and reliability,
Construction Details
| Designer | Tony Smith |
|---|---|
| Builder | Performance Cruising Inc. |
| Length | 33.000 ft |
| LOA | 30.500 ft |
| LWL | 27.580 ft |
| Beam | 14.000 ft |
| Displacement | 6520 lb |
| Max Draft | 4.750 ft |
| Min Draft | 1.330 ft |
The standard boat dimensions
| i | 37 ft |
|---|---|
| j | 12.75 ft |
| p | 33 ft |
| e | 11.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 37 ft | 12.75 ft | 33 ft | 11.25 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33 ft - (10058 mm) |
| Foot | * 11.25 ft - (3429 mm) |
| Leech | * 34.25 ft - (10439 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 34.49 ft - (10513 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 191.8 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.31 ft - (9543 mm) |
| Foot | * 17.11 ft - (5215 mm) |
| Leech | * 26.84 ft - (8181 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 14.66 ft - (4468 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 229.47 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.18 ft - (11332 mm) |
| Foot | * 20.77 ft - (6331 mm) |
| Leech | * 34.79 ft - (10604 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 19.12 ft - (5828 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 355.43 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 33 ft - (10058 mm) |
| Percentage LP | * 121.88 % |
| Length Perpendicular | * 15.54 ft - (4737 mm) |
| Deck Angle | * 4.89 ° |
| Area | * 279.75 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 17.25 ft - (5258 mm) |
| Leech | 33.5 ft - (10211 mm) |
| Percentage LP | * 125.18 % |
| Length Perpendicular | * 15.96 ft - (4865 mm) |
| Deck Angle | * 3.29 ° |
| Area | * 287.27 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 21.25 ft - (6477 mm) |
| Leech | 35 ft - (10668 mm) |
| Perc LP | * 165 % |
| Area | * 606 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
