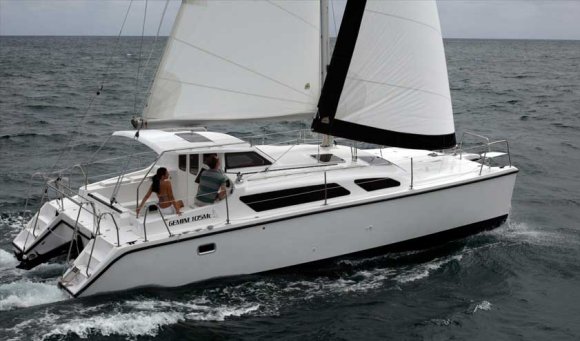

Gemini 105
Description
The Gemini 105 is a mid-sized cruiser. This performance-oriented design emphasizes speed and agility, featuring variable draft for versatility in different sailing conditions. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 34.400 ft |
| LOA | 33.500 ft |
| LWL | 31.750 ft |
| Beam | 14.000 ft |
| Displacement | 8000 lb |
| Max Draft | 5.000 ft |
| Min Draft | 1.500 ft |
The standard boat dimensions
| i | 37 ft |
|---|---|
| j | 12.75 ft |
| p | 33 ft |
| e | 11.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37 ft | 12.75 ft | 33 ft | 11.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33 ft - (10058 mm) |
| Foot | * 11.25 ft - (3429 mm) |
| Leech-AftHdBd | * 34.25 ft - (10439 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 34.49 ft - (10513 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 191.8 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.31 ft - (9543 mm) |
| Foot | * 17.11 ft - (5215 mm) |
| Leech | * 26.84 ft - (8181 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 14.66 ft - (4468 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 229.47 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.18 ft - (11332 mm) |
| Foot | * 20.77 ft - (6331 mm) |
| Leech | * 34.79 ft - (10604 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 19.12 ft - (5828 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 355.43 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 35 ft - (10668 mm) |
| Perc LP | * 165 |
| Area | * 627 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 18.5 ft - (5639 mm) |
| Leech | 32.25 ft - (9830 mm) |
| Percentage LP | * 129.65 % |
| Length Perpendicular | * 16.53 ft - (5038 mm) |
| Deck Angle | * 7.67 ° |
| Area | * 297.53 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 21.75 ft - (6629 mm) |
| Leech | 33 ft - (10058 mm) |
| Perc LP | * 150.75 |
| Length Perp | * 19.22 |
| Deck Angle | * 8.88 ° |
| Area | * 355.61 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 21.75 ft - (6629 mm) |
| Leech | 33 ft - (10058 mm) |
| Percentage LP | * 150.75 % |
| Length Perpendicular | * 19.22 ft - (5858 mm) |
| Deck Angle | * 8.88 ° |
| Area | * 355.61 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
