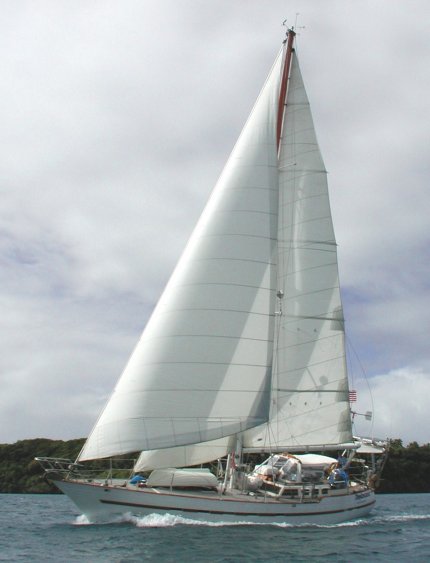

FD 12 (Flying Dutchman 12)
Description
The FD 12 (also known as FD-12, Flying Dutchman 12, or Flying Dutchman FD-12) is a classic bluewater cruiser from the late 1970s/early 1980s era, designed by Eva-M. Hollmann (a German naval architect) and imported to the USA by Willem Eickholt and Associates. It was built by Ta Yang Yacht Building Co. (Taiwan), the same yard behind Tayana models (often branded as Tayana Flying Dutchman 12 in some markets). Only about 25 hulls were produced (1974–1985), making it rare and sought-after among offshore sailors for its heavy, robust construction and comfortable layout. This is a cutter-rigged (or ketch-influenced) full-keel cruiser with positive flotation (unsinkable design), a fine entry for performance, and a long waterline for speed in its class—often described as a "high-performance world cruiser" with a hefty displacement (around 36,000 lbs in some reviews, though SailboatData lists closer to 21,000–25,000 lbs range for similar models; weights vary by fit-out). It's built for serious passages (some have circumnavigated or done extended cruising), with excellent motion comfort, dry cockpit, and spacious teak interior (multiple cabins, large tanks, good storage).
Construction Details
| Designer | Eva-M. Hollmann |
|---|---|
| Builder | Ta Yang Yacht Building Co. (Taiwan) |
| Length | 50.330 ft |
| LOA | 50.330 ft |
| LWL | 42.000 ft |
| Beam | 14.250 ft |
| Displacement | 35175 lb |
| Ballast | 15000 lb |
| Max Draft | 6.500 ft |
| Year Built | 1974 |
The standard boat dimensions
| i | 58.67 ft |
|---|---|
| j | 22.67 ft |
| p | 53.87 ft |
| e | 15.67 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 58.67 ft | 22.67 ft | 53.87 ft | 15.67 ft | - | - | - | - |
Sails
FD 12 (Flying Dutchman 12) - MAINSAIL
| Luff | * 53.87 ft - (16420 mm) |
|---|---|
| Foot | * 15.67 ft - (4776 mm) |
| Leech | * 55.31 ft - (16858 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 55.58 ft - (16941 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 433.49 ft² |
| Edit in Calculator |
FD 12 (Flying Dutchman 12) - YANKEE
| Luff | * 50.32 ft - (15338 mm) |
|---|---|
| Foot | * 34.61 ft - (10549 mm) |
| Leech | * 37.93 ft - (11561 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 26.07 ft - (7946 mm) |
| Deck Angle | * 20.01 ° |
| Area | * 655.86 ft² |
| Edit in Calculator |
FD 12 (Flying Dutchman 12) - STAYSAIL
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
