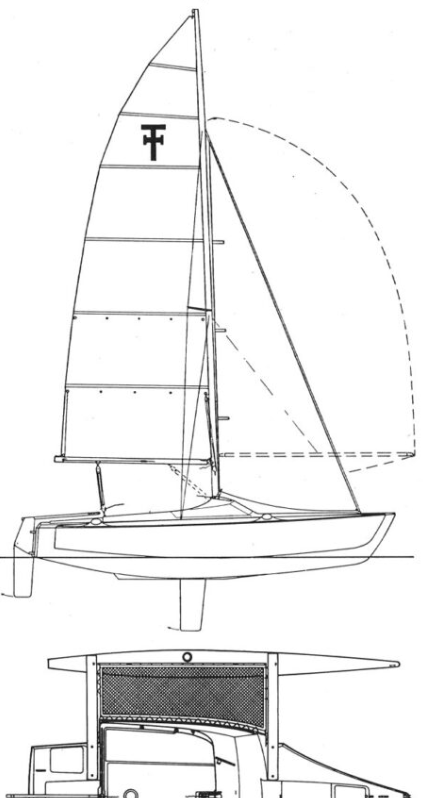

Farrier Eagle Trimaran
Description
The Farrier Eagle Trimaran (also known as the Eagle or Eagle Tramp) is a rare, high-performance folding trimaran sailboat designed by the legendary multihull pioneer Ian Farrier in the early 1980s. Built primarily by Pyramid International in the United States as a licensed adaptation of Farrier's Australian Tramp design (1979–1982), the Eagle was marketed as an affordable entry into folding trimaran sailing, emphasizing speed, trailering ease, and simplicity for racing or coastal cruising. Only ~20–30 units were produced, making it one of Farrier's least common early models. It features Farrier's patented folding beam system (amas fold inward in seconds without tools), a lightweight construction, and a fractional sloop rig—capable of planning at 15–18 knots in ideal conditions. The Eagle is essentially the U.S. production version of the Tramp, with minor adaptations for American builders, and served as a precursor to Farrier's iconic F-27.
Construction Details
| Designer | Ian Farrier |
|---|---|
| Builder | Pyramid International |
| Length | 20.000 ft |
| LOA | 29.420 ft |
| LWL | 23.580 ft |
| Beam | 10.700 ft |
| Max Draft | 5.750 ft |
The standard boat dimensions
| i | 23.25 ft |
|---|---|
| j | 7.75 ft |
| p | 25.08 ft |
| e | 8 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 23.25 ft | 7.75 ft | 25.08 ft | 8 ft | - | - | - | - |
Documents
Sails
Farrier Eagle Trimaran - MAINSAIL
| Luff | 24.58 ft - (7492 mm) |
|---|---|
| Foot | 8 ft - (2438 mm) |
| Leech | * 25.56 ft - (7791 mm) |
| Tack Angle | 89 ° |
| Diagonal | 25.72 ft - (7839 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 101.44 ft² |
| Edit in Calculator | |
Farrier Eagle Trimaran - MAINSAIL
| Luff | 24.58 ft - (7492 mm) |
|---|---|
| Foot | 8 ft - (2438 mm) |
| Leech | * 25.42 ft - (7748 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 25.58 ft - (7797 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 101.37 ft² |
| Edit in Calculator | |
Farrier Eagle Trimaran - JIBSAIL
| Luff | 24.17 ft - (7367 mm) |
|---|---|
| Foot | 7.63 ft - (2326 mm) |
| Leech | 21.67 ft - (6605 mm) |
| Length Perpendicular | 6.74 ft - (2054 mm) |
| Area | 81.46 ft² |
| Edit in Calculator | |
Farrier Eagle Trimaran - JIBSAIL
| Luff | 24 ft - (7315 mm) |
|---|---|
| Foot | 11.58 ft - (3530 mm) |
| Leech | * 18.84 ft - (5742 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 8.91 ft - (2716 mm) |
| Deck Angle | * 21.28 ° |
| Area | * 106.9 ft² |
| Edit in Calculator | |
Farrier Eagle Trimaran - GENOA
| Luff | 24 ft - (7315 mm) |
|---|---|
| Foot | 11.75 ft - (3581 mm) |
| Leech | 22.25 ft - (6782 mm) |
| Length Perpendicular | 10.83 ft - (3301 mm) |
| Area | 129.94 ft² |
| Edit in Calculator | |
Farrier Eagle Trimaran - GENOA
| Luff | 24.17 ft - (7367 mm) |
|---|---|
| Foot | 7.63 ft - (2326 mm) |
| Leech | 21.67 ft - (6605 mm) |
| Area | * 81.46 ft² |
| Edit in Calculator | |
Farrier Eagle Trimaran - SPINNAKER
| Stays | * 23.28 ft - (7096 mm) |
|---|---|
| MidGirth | * 13.95 ft - (4252 mm) |
| Foot | * 13.95 ft - (4252 mm) |
| Perc LP | * 180 % |
| Area | * 276 ft² |
| Edit in Calculator | |
Farrier Eagle Trimaran - SPINNAKER
| Stays | 26 ft - (7925 mm) |
|---|---|
| MidGirth | 13.95 ft - (4252 mm) |
| Foot | 13.95 ft - (4252 mm) |
| Perc LP | * 180 % |
| Area | * 308 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
