F-32 (Farrier 32)
Description
The F-32 (Farrier 32) is a high-performance folding trimaran sailboat designed by Ian Farrier as a plans-built (home or professional amateur) evolution of his F-33 production model, introduced in 2007. It addresses the F-33's high cost and limited availability due to currency fluctuations and production constraints, offering a near-identical hull form at a fraction of the price for builders worldwide. Available in variants like F-32A (aft cockpit, standard), F-32AX (extended beam for wider trailering up to 9'8"), F-32R (racing with rotating mast), and F-32SR (sport racer with carbon options and high-aspect daggerboard), the F-32 emphasizes speed, stability, and trailerability with Farrier's patented folding system (amas fold inward in seconds). Suitable for solo to family use, it's a versatile coastal/offshore cruiser-racer, capable of 15–20+ knots planning speeds. Farrier Marine provides detailed plans (~$1,000–$2,000 USD), with ~50–100 known builds since launch.
Construction Details
| Designer | Ian Farrier |
|---|---|
| Length | 32.000 ft |
| LOA | 29.420 ft |
| LWL | 23.580 ft |
| Beam | 10.700 ft |
| Max Draft | 5.750 ft |
The standard boat dimensions
| i | 43.96 ft |
|---|---|
| j | 16.66 ft |
| p | 41.46 ft |
| e | 13.81 ft |
| p2 | 39 ft |
| e2 | 12.50 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 43.96 ft | 16.66 ft | 41.46 ft | 13.81 ft | 39 ft | 12.50 ft | - | - |

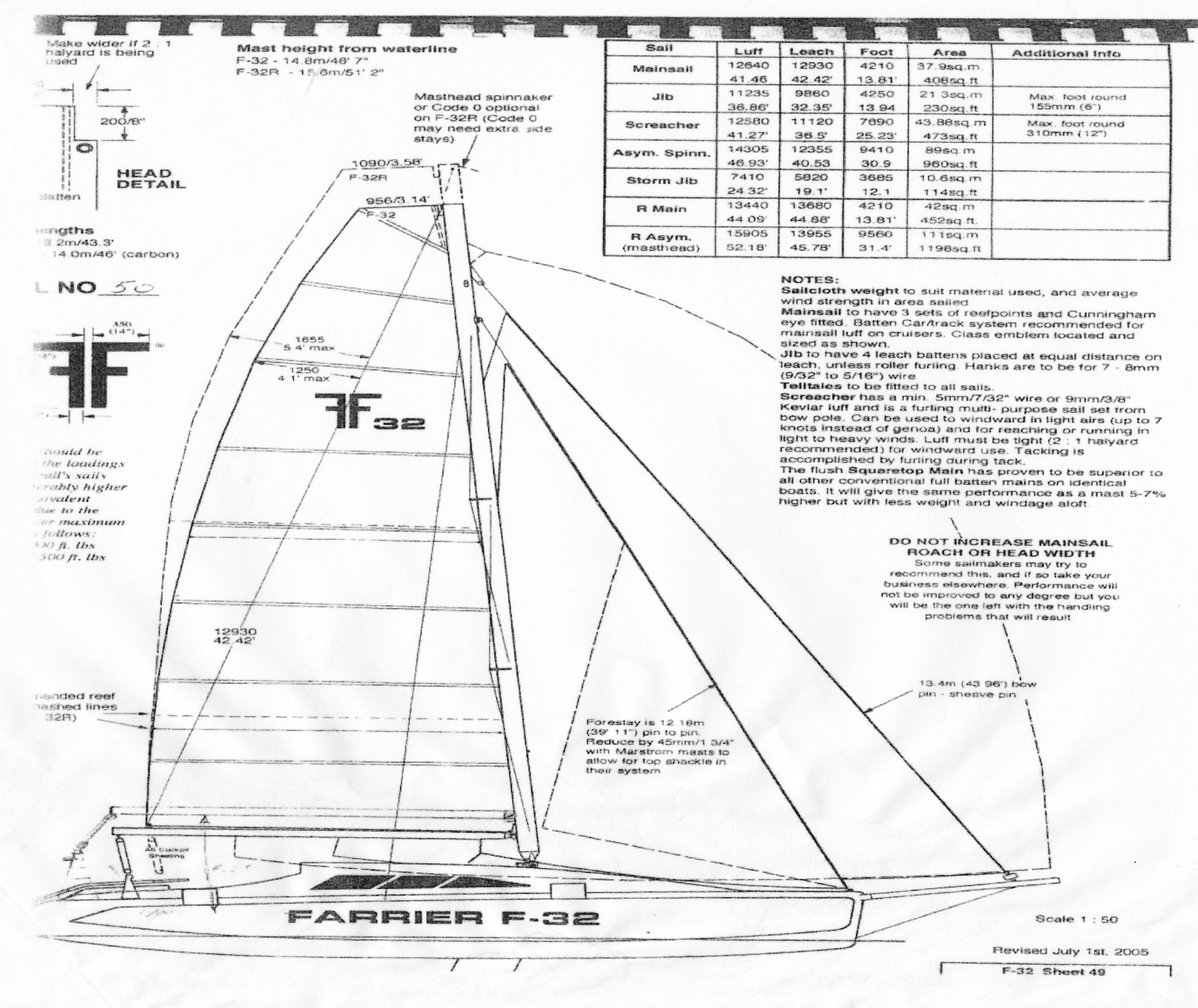

Blueprints
Sails
| Sail Type | JIBSAIL |
|---|---|
| Luff | 36.86 ft - (11235 mm) |
| Foot | 13.94 ft - (4249 mm) |
| Leech | 32.35 ft - (9860 mm) |
| Percentage LP | * 101.85 % |
| Length Perpendicular | * 12.13 ft - (3697 mm) |
| Deck Angle | * 13 ° |
| Area | * 223.55 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 52.18 ft - (15904 mm) |
| Foot | 31.4 ft - (9571 mm) |
| Leech | 45.78 ft - (13954 mm) |
| Perc LP | * 165 % |
| Area | * 1229 ft² |
| Sail Type | MAIN (LG ROACH) |
|---|---|
| Luff | 44.09 ft - (13439 mm) |
| Foot | 13.81 ft - (4209 mm) |
| Leech | * 42.26 ft - (12881 mm) |
| Tack Angle | 86 ° |
| Diag (clew/head) | 42.42 ft - (12930 mm) |
| Head (inches) | 3.58 in - (91 mm) |
| Area | * 298.01 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
