F-25a
Description
The F-25A is a sailboat.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |

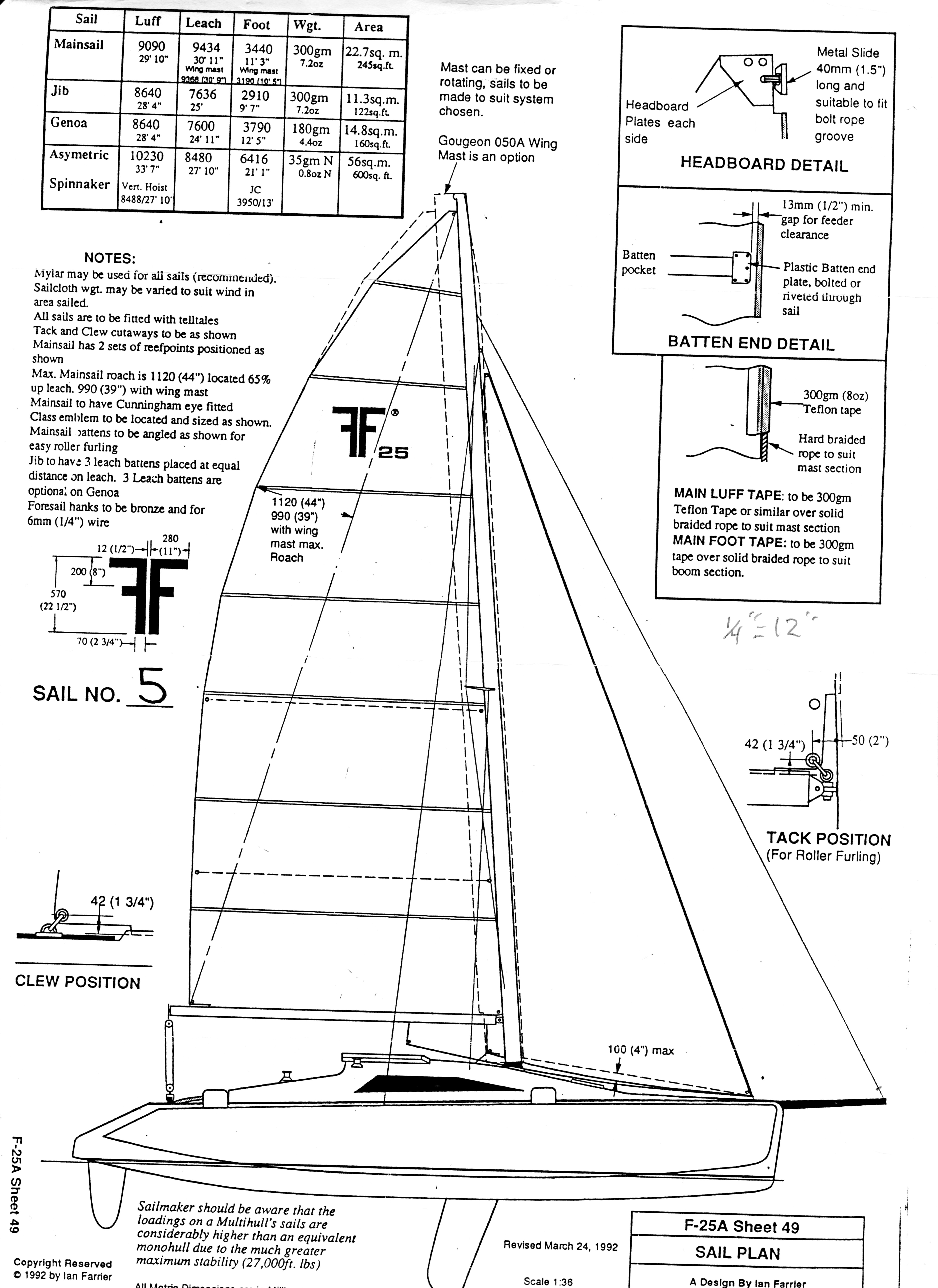

Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 29.83 ft - (9092 mm) |
| Foot | 11.25 ft - (3429 mm) |
| Leech | * 31.36 ft - (9559 mm) |
| Tack Angle | * 87.99 ° |
| Diagonal | * 31.51 ft - (9604 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | 167.59 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28.33 ft - (8635 mm) |
| Foot | 9.58 ft - (2920 mm) |
| Leech | 25 ft - (7620 mm) |
| Length Perpendicular | 8.32 ft - (2536 mm) |
| Area | 117.81 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 28.33 ft - (8635 mm) |
| Foot | 12.42 ft - (3786 mm) |
| Leech | 24.92 ft - (7596 mm) |
| Length Perpendicular | 10.91 ft - (3325 mm) |
| Area | 154.6 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 29.18 ft - (8894 mm) |
| MidGirth | 23.33 ft - (7111 mm) |
| Foot | 23 ft - (7010 mm) |
| Area | 570.47 ft² |
