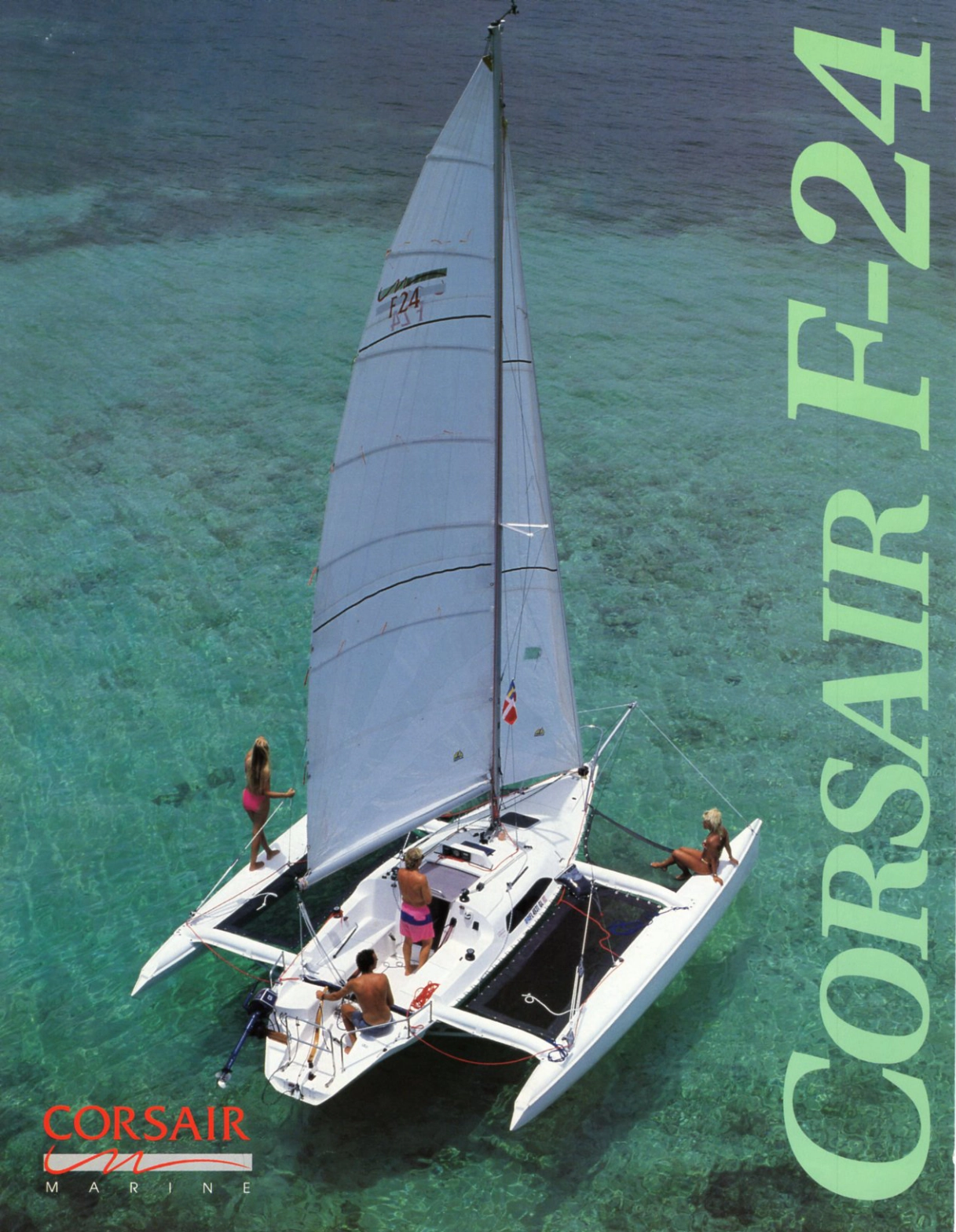

F-24 MK I
Description
The F-24 MK I is a sailboat.
Sail calculations are not available for this boat as some dimensions are missing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 24.000 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 32.5 ft - (9906 mm) |
| Foot | 19 ft - (5791 mm) |
| Leech | 30.75 ft - (9373 mm) |
| Length Perpendicular | * 17.56 ft - (5352 mm) |
| Area | * 285.34 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 29.33 ft - (8940 mm) |
| Foot | 10.42 ft - (3176 mm) |
| Leech-AftHdBd | * 29.79 ft - (9080 mm) |
| Tack Ang | * 83.53 ° |
| Diag (clew/head) | 30 ft - (9144 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 156.48 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 28 ft - (8534 mm) |
| Length Perpendicular | 9.8 ft - (2987 mm) |
| Area | * 139.94 ft² |
| Sail Type | ASYMMETRICAL |
|---|
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 32.5 ft - (9906 mm) |
| Foot | 22.1 ft - (6736 mm) |
| Leech | 32.7 ft - (9967 mm) |
| Area | * 539 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
