F-24 Mk 2
Description

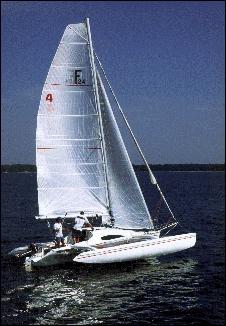

The F-24 Mk II (also known as the Corsair F-24 Mk II or simply Corsair 24 Mk II) is a high-performance, trailerable folding trimaran designed by renowned multihull designer Ian Farrier. Produced by Corsair Marine from the mid-1990s to 2003 (with approximately 200 units built), it evolved from the original F-24 Mk I, incorporating refinements like a daggerboard instead of a centerboard, a rotating mast for better sail performance, and a lighter displacement. It's celebrated for its blistering speed—capable of exceeding 20 knots—while remaining compact and easy to transport, making it ideal for day racing, weekend cruising, or family adventures.
Construction Details
| Designer | Ian Farrier |
|---|---|
| Builder | Corsair Marine |
| Length | 24.170 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Blueprints
Sails
| Sail Type | JIBSAIL |
|---|---|
| Luff | 27.67 ft - (8434 mm) |
| Foot | 9.75 ft - (2972 mm) |
| Leech | 24.5 ft - (7468 mm) |
| Length Perpendicular | 8.54 ft - (2603 mm) |
| Area | * 118.14 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30.83 ft - (9397 mm) |
| Foot | 19.5 ft - (5944 mm) |
| Leech | 24.5 ft - (7468 mm) |
| Length Perpendicular | * 15.49 ft - (4721 mm) |
| Area | * 238.76 ft² |
| Sail Type | MAIN (LG ROACH) |
|---|---|
| Luff | 29.5 ft - (8992 mm) |
| Foot | 11.5 ft - (3505 mm) |
| Leech | * 30.26 ft - (9223 mm) |
| Tack Angle | * 83.89 ° |
| Diag (clew/head) | 30.5 ft - (9296 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 174.22 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
