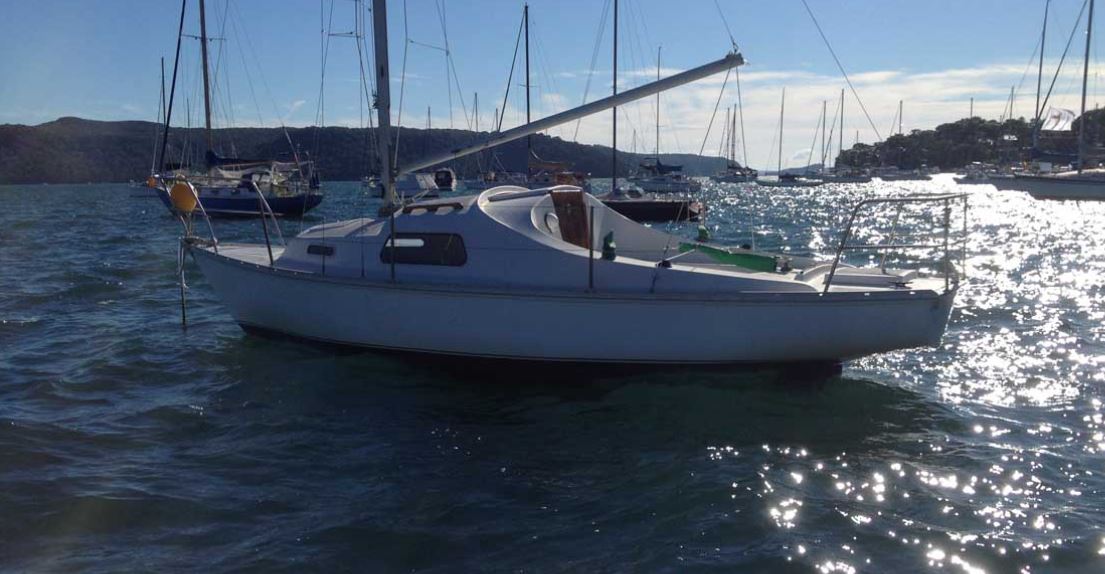

Endeavour 24
Description
The Endeavour 24 is a small sailboat. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 24.000 ft |
| LOA | 24.000 ft |
| LWL | 19.000 ft |
| Beam | 7.830 ft |
| Displacement | 3307 lb |
| Max Draft | 3.500 ft |
The standard boat dimensions
| i | 26 ft |
|---|---|
| j | 9 ft |
| p | 22.50 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26 ft | 9 ft | 22.50 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 22.5 ft - (6858 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 24.09 ft - (7343 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 24.3 ft - (7407 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 116.19 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 13.75 ft - (4191 mm) |
| Leech | 24.92 ft - (7596 mm) |
| Perc LP | * 165 |
| Area | * 278 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 23.33 ft - (7111 mm) |
| Foot | 10.25 ft - (3124 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Percentage LP | * 100 % |
| Length Perpendicular | * 9 ft - (2743 mm) |
| Deck Angle | * 9.53 ° |
| Area | * 104.96 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.25 ft - (8001 mm) |
| Foot | 14.58 ft - (4444 mm) |
| Leech | 24.67 ft - (7519 mm) |
| Percentage LP | * 149.67 % |
| Length Perpendicular | * 13.47 ft - (4106 mm) |
| Deck Angle | * 3.42 ° |
| Area | * 176.79 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 26.14 ft - (7967 mm) |
| MidGirth | * 16.2 ft - (4938 mm) |
| Foot | * 16.2 ft - (4938 mm) |
| Perc LP | * 180 |
| Area | * 360 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 26.14 ft - (7967 mm) |
| Foot | * 14.68 ft - (4474 mm) |
| Leech | * 24.44 ft - (7449 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 13.5 ft - (4115 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 176.44 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
