ELLEN SPRIT RIG
Description

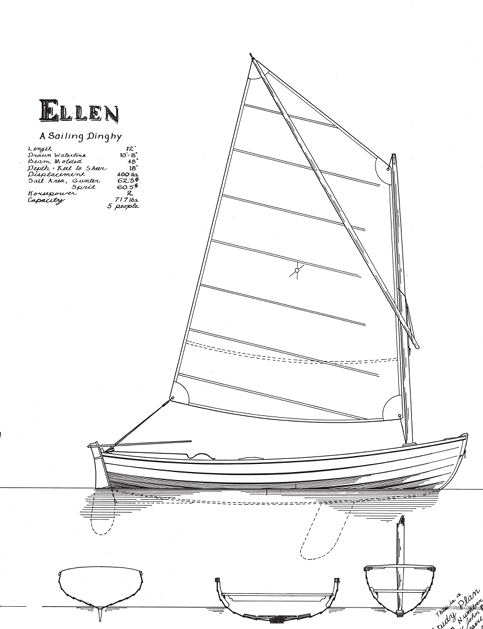

The Ellen Sprit Rig is a sailing configuration featured on the Ellen 12, a 12-foot lapstrake (clinker-built) dinghy designed by John Brooks of Brooks Boats Designs in Brooksville, Maine, introduced in 1996. The Ellen 12 is a classic sail-and-oar boat, blending traditional aesthetics with modern glued-lapstrake plywood construction for ease of building and versatile performance. The sprit rig is the standard sail option (alongside the optional sliding gunter rig), prized for its simplicity, boomless design, and ease of reefing—perfect for solo sailors, families, or yacht tenders. Over 100 Ellens have been built, often in workshops at the WoodenBoat School, where Brooks teaches. The sprit rig's compact setup and forgiving handling make it ideal for day sailing, rowing, or light racing, earning praise as a "nimble, stable gem" that’s both a beginner’s delight and a seasoned sailor’s joy.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
ELLEN SPRIT RIG - SPRIT
| Luff | 8.25 ft - (2515 mm) |
|---|---|
| Foot | 7.67 ft - (2338 mm) |
| Leech | 11.5 ft - (3505 mm) |
| Tack Angle | * 82.44 ° |
| Diag (clew/throat) | 10.5 ft - (3200 mm) |
| Head | 5.75 ft - (1753 mm) |
| Area | * 61.42 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
