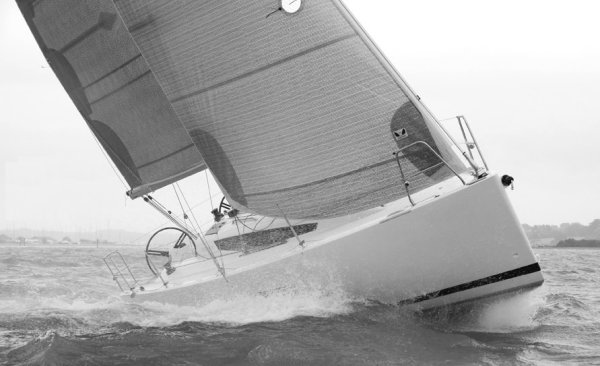

Elan 40
Description

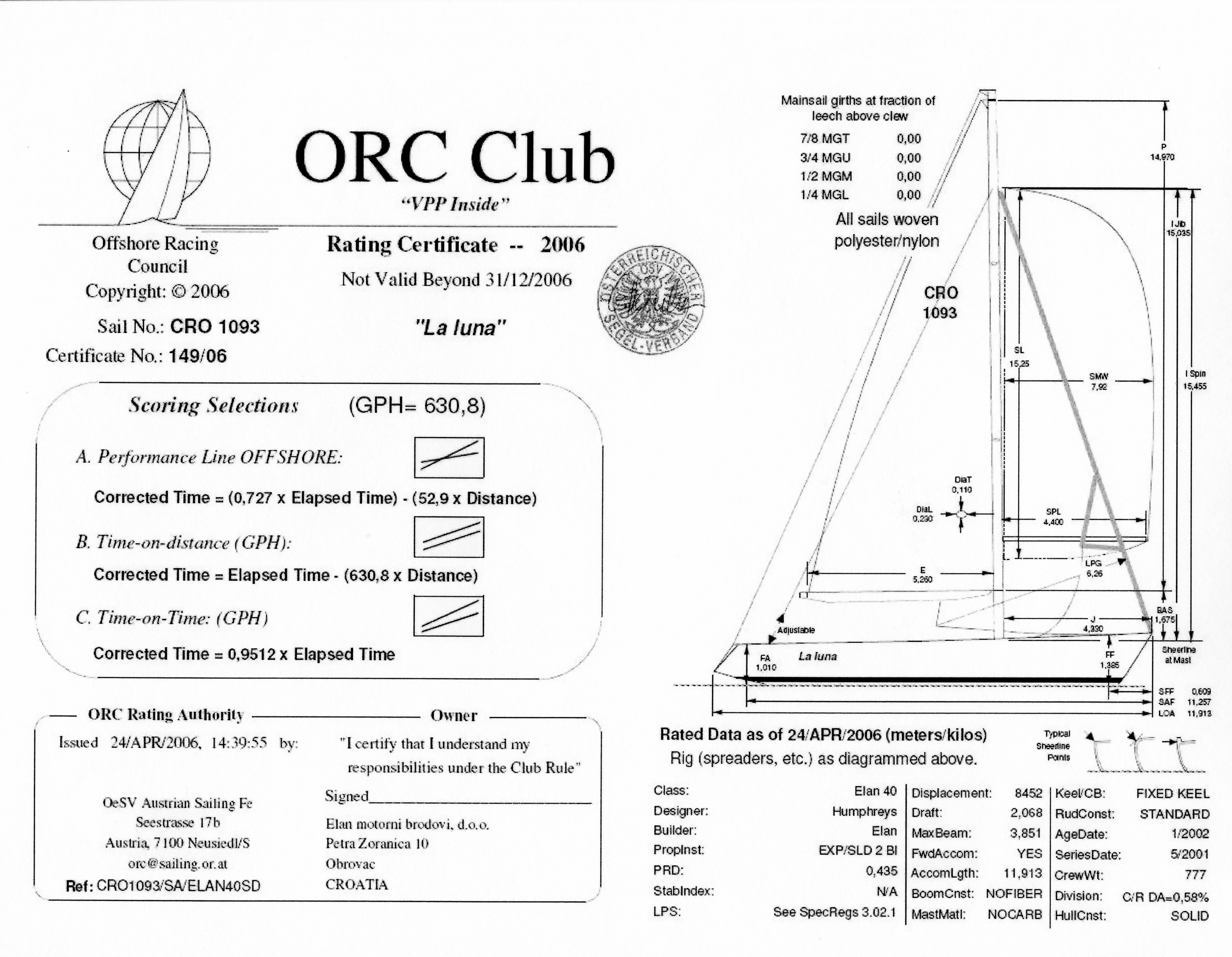

Desginer: Rob HUMPHREYS Yacht Design Builder: Elan Displacement 8552 Draft 2068 Max Beam 3.851M Series Date 5/2001
Construction Details
| Designer | Rob Humphreys |
|---|---|
| Length | 40.026 ft |
| LOA | 31.330 ft |
| LWL | 28.580 ft |
| Beam | 10.560 ft |
| Displacement | 8135 lb |
| Max Draft | 7.050 ft |
| Min Draft | 7.050 ft |
The standard boat dimensions
| i | 50.71 ft |
|---|---|
| j | 14.21 ft |
| p | 49.11 ft |
| e | 17.26 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50.71 ft | 14.21 ft | 49.11 ft | 17.26 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 49.11 ft - (14969 mm) |
| Foot | * 17.26 ft - (5261 mm) |
| Leech-AftHdBd | * 51.2 ft - (15606 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 51.48 ft - (15691 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 434.19 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 49.5 ft - (15088 mm) |
| Foot | 17.25 ft - (5258 mm) |
| Leech | 45 ft - (13716 mm) |
| Percentage LP | * 110.02 % |
| Length Perpendicular | * 15.63 ft - (4764 mm) |
| Deck Angle | * 9.39 ° |
| Area | * 386.81 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 50.25 ft - (15316 mm) |
| Foot | 14.875 ft - (4534 mm) |
| Leech | 47.25 ft - (14402 mm) |
| Percentage LP | * 98.34 % |
| Length Perpendicular | * 13.97 ft - (4258 mm) |
| Deck Angle | * 4.45 ° |
| Area | * 350.97 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 50.25 ft - (15316 mm) |
| Foot | 21.8 ft - (6645 mm) |
| Leech | 47.6 ft - (14508 mm) |
| Percentage LP | * 144.59 % |
| Length Perpendicular | * 20.54 ft - (6261 mm) |
| Deck Angle | * 3.94 ° |
| Area | * 516.02 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 50.02 ft - (15246 mm) |
| Foot | * 23.44 ft - (7145 mm) |
| Leech | * 46.02 ft - (14027 mm) |
| Perc LP | * 165 % |
| Area | * 879 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 50.02 ft - (15246 mm) |
| MidGirth | * 25.57 ft - (7794 mm) |
| Foot | * 25.57 ft - (7794 mm) |
| Perc LP | * 180 % |
| Area | * 1087 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 28.96 ft - (8827 mm) |
| Foot | * 10.36 ft - (3158 mm) |
| Leech | * 24.59 ft - (7495 mm) |
| Perc LP | * 59.97 % |
| Length Perp | * 8.52 ft - (2597 mm) |
| Deck Angle | * 19.02 ° |
| Area | * 123.38 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
