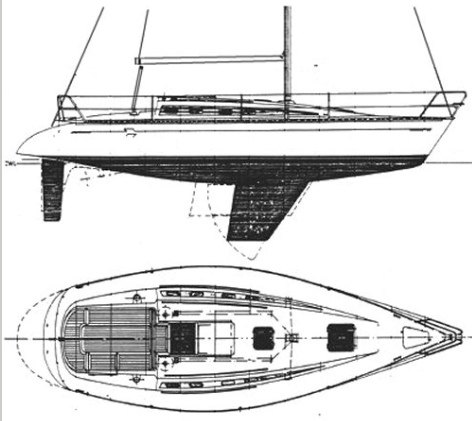

Elan
Description
The Elan is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 31.000 ft |
The standard boat dimensions
| i | 38.52 ft |
|---|---|
| j | 10.76 ft |
| p | 37.60 ft |
| e | 13.58 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 38.52 ft | 10.76 ft | 37.60 ft | 13.58 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37.6 ft - (11460 mm) |
| Foot | * 13.58 ft - (4139 mm) |
| Leech-AftHdBd | * 39.25 ft - (11963 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 39.53 ft - (12049 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 263.31 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.99 ft - (11579 mm) |
| Foot | * 17.13 ft - (5221 mm) |
| Leech | * 36.06 ft - (10991 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.14 ft - (4919 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 306.55 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 37.99 ft - (11579 mm) |
| Foot | * 17.75 ft - (5410 mm) |
| Leech | * 34.95 ft - (10653 mm) |
| Perc LP | * 165 |
| Area | * 506 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
