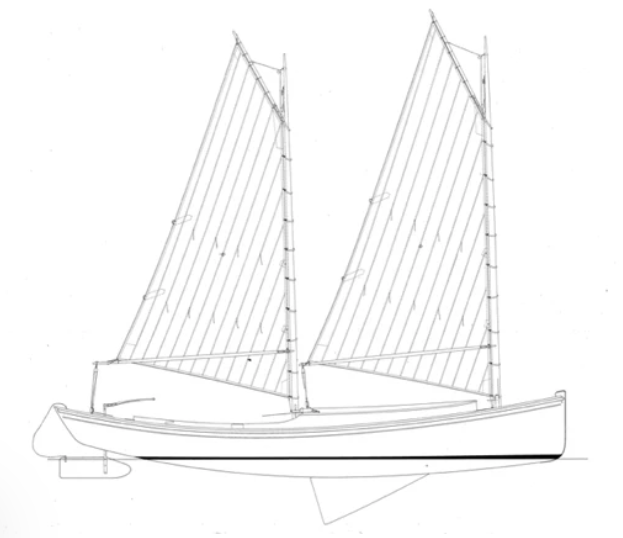

Egret Sharpie 28
Description
The Egret Sharpie 28 is a modern adaptation of Ralph Middleton Munroe’s historic 1886 Egret, a 28’2” flat-bottomed sharpie sailboat designed for the shallow waters of Biscayne Bay, Florida. Re-envisioned by naval architects like Joel White and Dave Dillion in the 1980s, with plans refined by WoodenBoat and builders like John Swain, this sharpie retains the original’s shoal-draft simplicity and speed while incorporating modern construction techniques (e.g., plywood/epoxy). It’s a lightweight, trailerable day-sailor or micro-cruiser for 4–6, ideal for coastal exploration, beaching, or racing in light airs. Known for its striking gaff-rigged silhouette and forgiving handling, it’s a favorite among wooden boat enthusiasts, with dozens built since the revival. The design balances traditional aesthetics with practical performance, earning accolades like “a sharpie that sails like a dream” in WoodenBoat forums.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Blueprints
Sails
Egret Sharpie 28 - GAFF MAIN
| Luff | 15.25 ft - (4648 mm) |
|---|---|
| Foot | 10.25 ft - (3124 mm) |
| Leech | 19.92 ft - (6072 mm) |
| Tack Angle | * 77.93 ° |
| Diag (clew/throat) | 16.5 ft - (5029 mm) |
| Head | 6.083 ft - (1854 mm) |
| Area | * 121.59 ft² |
| Edit in Calculator | |
Egret Sharpie 28 - GAFF MAIN
| Luff | 15.083 ft - (4597 mm) |
|---|---|
| Foot | 9.67 ft - (2947 mm) |
| Leech | 18.58 ft - (5663 mm) |
| Tack Angle | * 76.03 ° |
| Diag (clew/throat) | 15.83 ft - (4825 mm) |
| Head | 5 ft - (1524 mm) |
| Area | * 106.31 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
